The manufacturer has stopped production. We no longer have stock. You can find the successor model (or comparable products) linked below the description.
Product information "Marshall CV503"

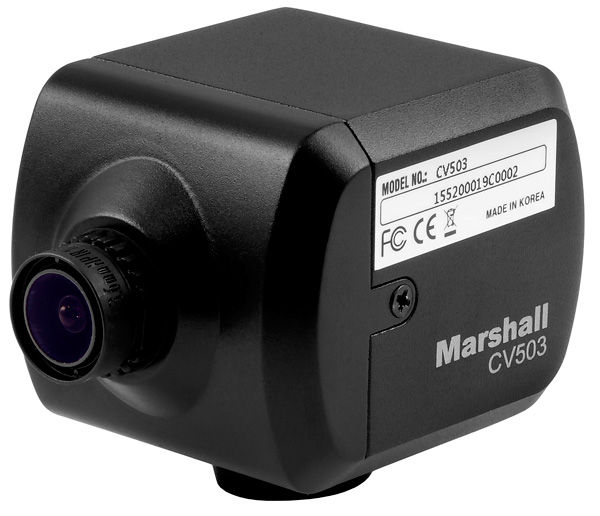

Full HD mini camera with interchangeable lens
With the CV503 you can output video via 3G-SDI.
Sensor & Lens
- 2.5 Megapixel sensor (1/2.86") Full HD
- 3.6mm lens included (72° horizontal AOV)
- M12 lens interchangeable (available in various focal lengths)
Resolution and frame rates
- 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
- 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

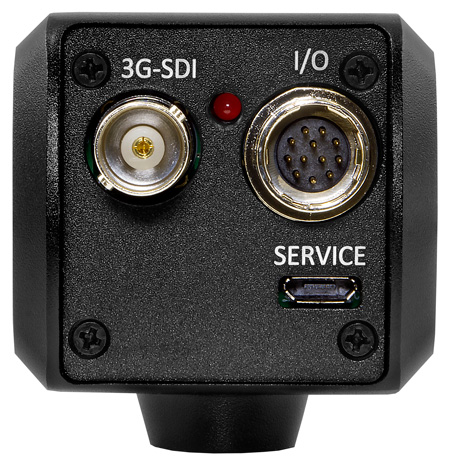

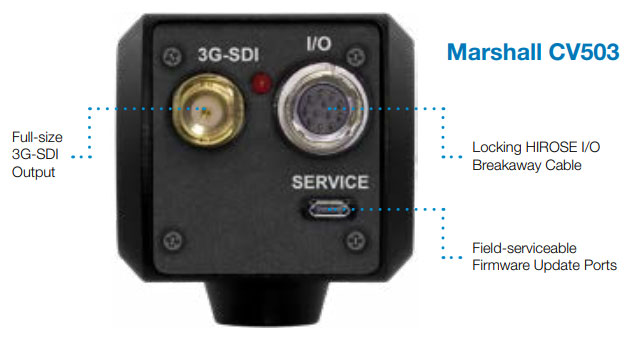

Connections
- 3G-SDI
- RS-485 (with terminal connection for 2-pole cabling)
- USB port for firmware updates
- 3.5mm stereo audio input
- 12V DC
Features
- versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
- Day/Night mode (automatic and manual selectable)
- Adjustment via On Screen Menu: by joystick on cable
- Adjustment in live mode: with external control panel via RS-485 (VISCA)
- Compact & robust housing
- 1/4" female thread on the bottom
Power consumption
- 6W (12V DC / 500mA)
Dimensions & weight
- 47mm (H) x 44mm (W) x 56mm (D)
- 110g
Scope of delivery
- Camera
- 3.6mm lens
- Breakout cable
- Power supply unit
Manufacturer warranty: 2 years
| Produktgruppe: | Kamera |
|---|---|
| Status der Verfügbarkeit: | EOL (kein Lagerbestand mehr) |
