info@vision2see.deMarshall CV504-WP
- Full HD (New Sensor)
- 3G-SDI | Waterproof (IP67)
- 3.6mm lens (interchangeable)

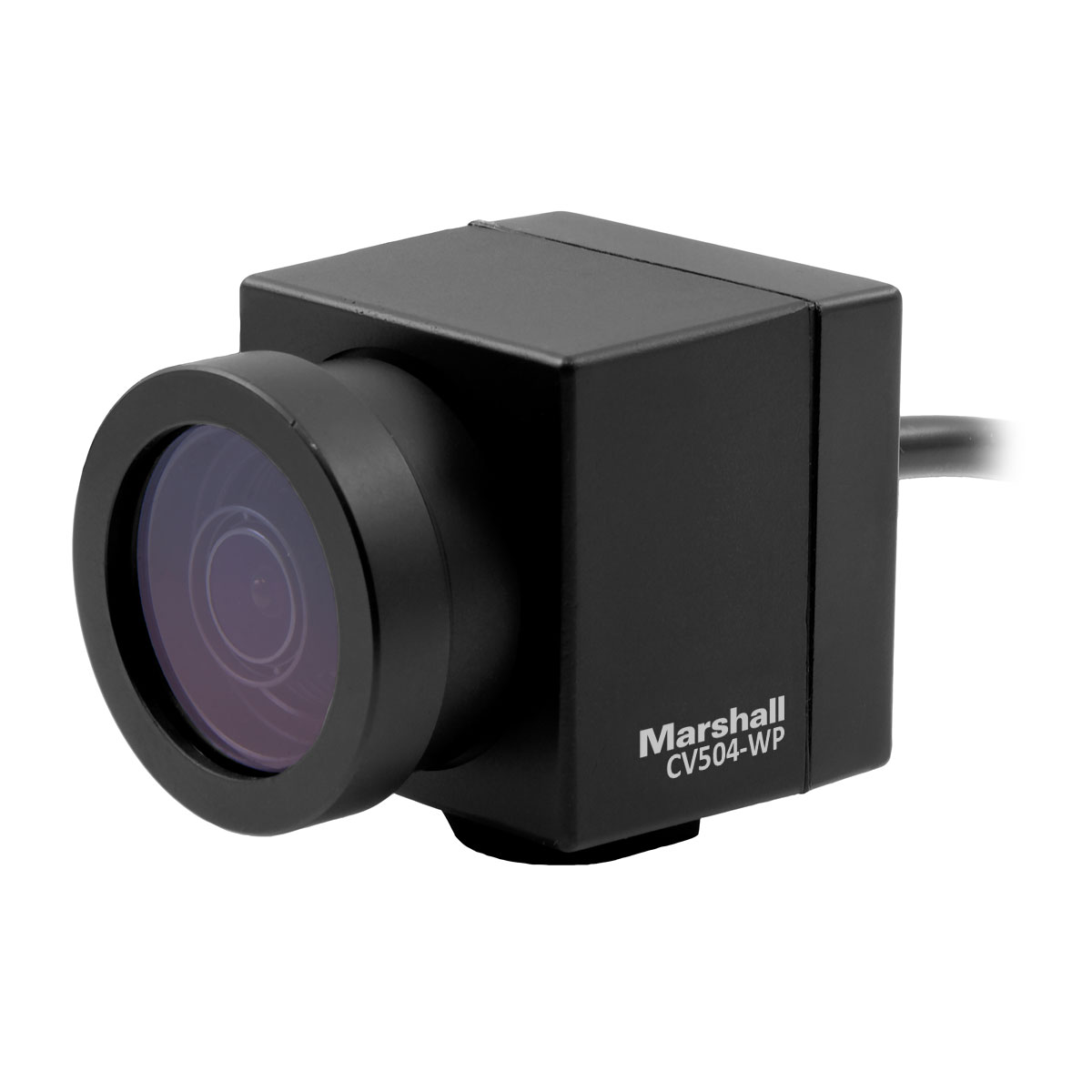

Waterproof Full HD mini camera with interchangeable lens.
- 2.5 Megapixel (1/2.8 "/ 2.9μm / 4:2:2 color)
- 4.0mm lens included (85° horizontal AOV)
- M12 lens interchangeable (available in various focal lengths)* please see note below.
- 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
- 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
- 3G-SDI
- RS-485 (with terminal connection for 2-pole cabling)
- USB port for firmware updates
- 3.5mm stereo audio input
- 12V DC
- IP67 water protection rating (suitable for temporary submersion)
- Versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
- Day/Night mode (automatic and manual selectable)
- Adjustment via On Screen Menu: by joystick on cable
- Adjustment in live mode: with external control panel via RS-485 (VISCA)
- Compact & robust housing
- 1/4" female thread on the bottom
- 6W (12V DC / 500mA)
- 47mm (H) x 44mm (W) x 56mm (D)
- Camera
- 4.0mm lens

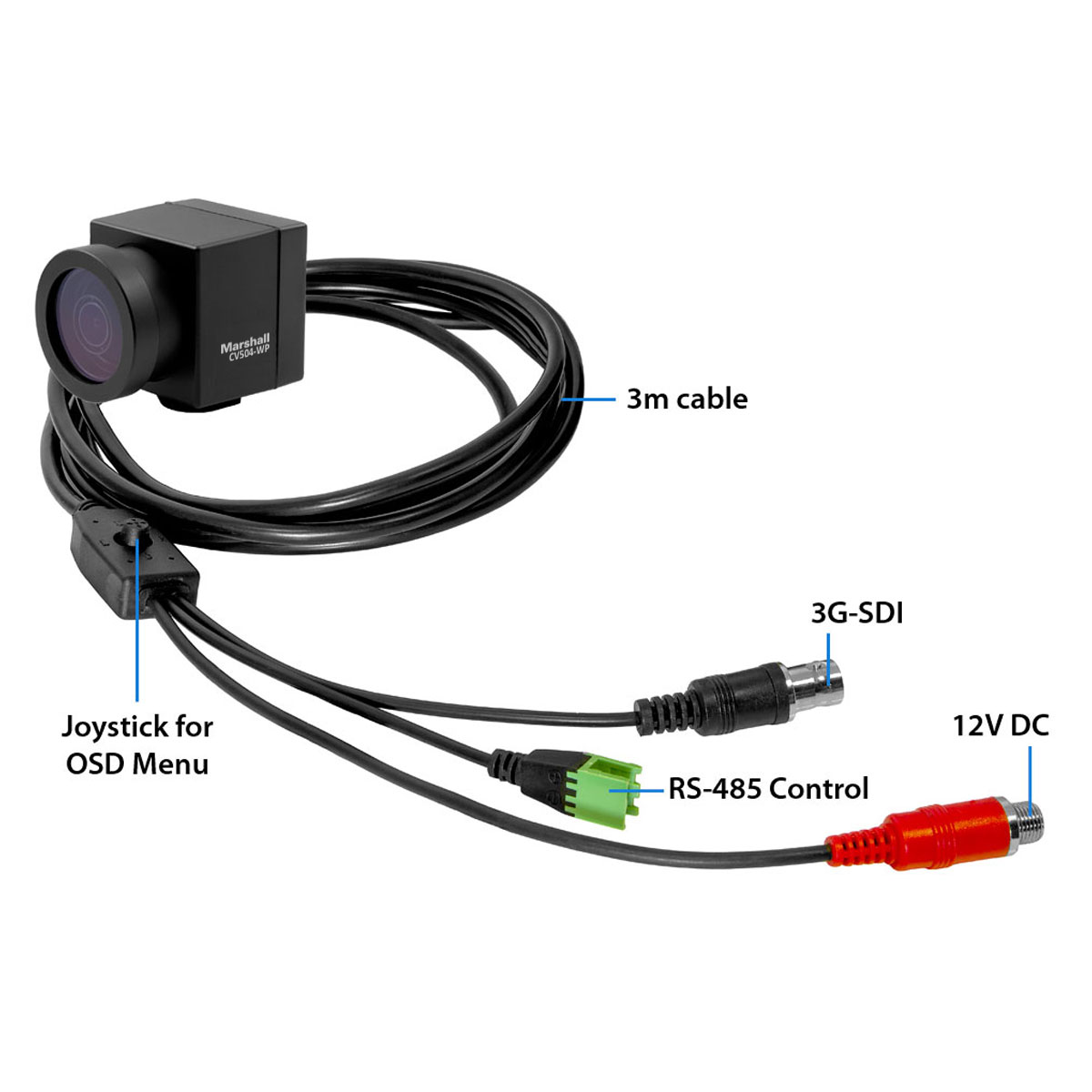

- Breakout cable (3m length)
- Power supply unit
- 4.0mm approx. Horizontal AOV = 85º included in delivery
- 2.8mm approx. Horizontal AOV = 100º (Article No. CV-4702.8-3MP-IR)
If the aperture angle is larger, you may see a vignette in the image.
If the water protection is not absolutely necessary, you can remove the protective cap. Then you can use all M12 lenses.
- 6.0mm approx. Horizontal AOV = 48º (no fisheye) (Article No. CV-4706-3MP-IR)
- 8.0mm approx. Horiz AOV = 40º (Article No. CV4708.0-3MP)
- 12.0mm approx. Horiz AOV = 33° (Article No. CV4712.0-3MP)
- 16.0mm approx. Horiz AOV = 25° (Article No. CV4716.0-2MP)
| Lens Options: | M12-Mount (interchangeable) |
|---|---|
| Resolution: | Full HD |
| Video Outputs: | 3G-SDI |
| Zoom Certified: | Waterproof (IP67) |
