info@vision2see.deMarshall CV368
- Full HD | Global Shutter
- 3G-SDI | HDMI | Genlock
- CS Lens Mount

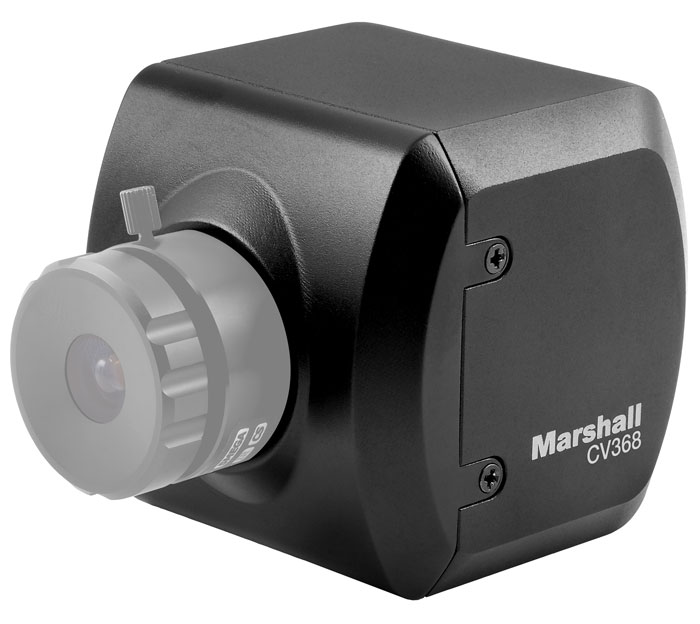

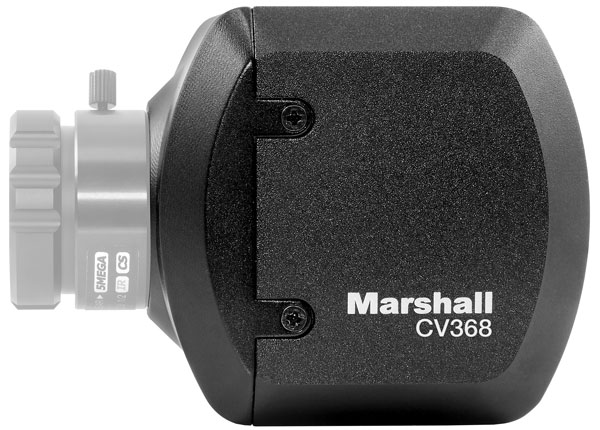

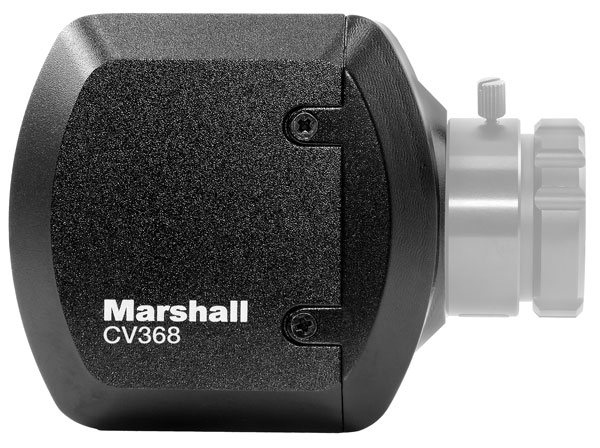

Full HD Mini Camera with Global Shutter Sensor and Genlock
- 3.2 megapixel Sony sensor (1/1.8") Full HD
- Low-light capable down to 0.05 lux (also in the IR range)
- CS- / C-mount (lenses available separately in various focal lengths)
- 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
- 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

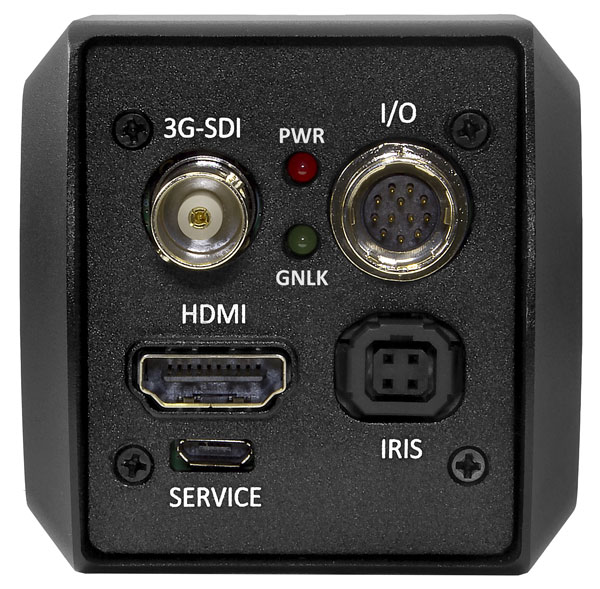

- 3G-SDI
- HDMI
- RS-485 (with clamp connection for 2-pole cabling)
- USB port for firmware updates
- 3.5mm stereo audio input
- DC port for lenses with auto iris
- 12V DC for power supply
- Genlock Tri-level Sync
- versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
- Adjustment via On Screen Menu: by joystick on cable
- Adjustment in live operation: with external control panel via RS-485 (VISCA)
- Compact & robust housing
- 1/4" female thread on the bottom
- 6W (12V DC / 500mA)
- -10°C to +50°C

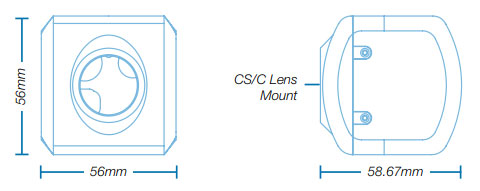

- 56mm (H) x 56mm (W) x 59mm (D) (without lens)
- 160g
- Camera
- Breakout cable
- Power supply unit
| Features: | Genlock, Global Shutter |
|---|---|
| Resolution: | Full HD |
| Video Outputs: | HDMI, 3G-SDI |
Login
Herstellerinformationen
Marshall Electronics Inc.
20608 Madrona Avenue
Torrance CA 90503
USA
Support@marshall-usa.com
https://marshall-usa.com/
Importeur
VISION2see GmbH
Bajuwarenring 14
82041 Oberhaching
+49 89 693 991 50
info@vision2see.de

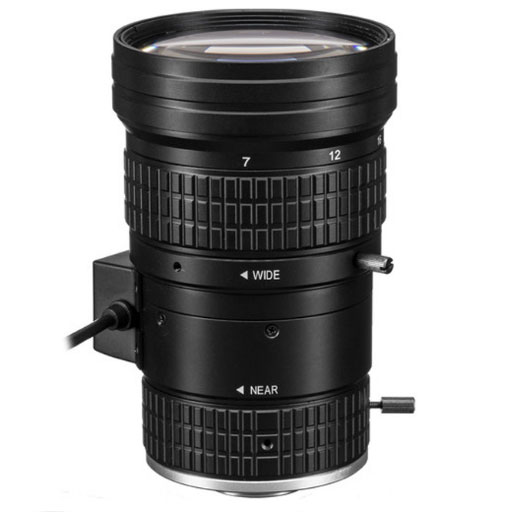

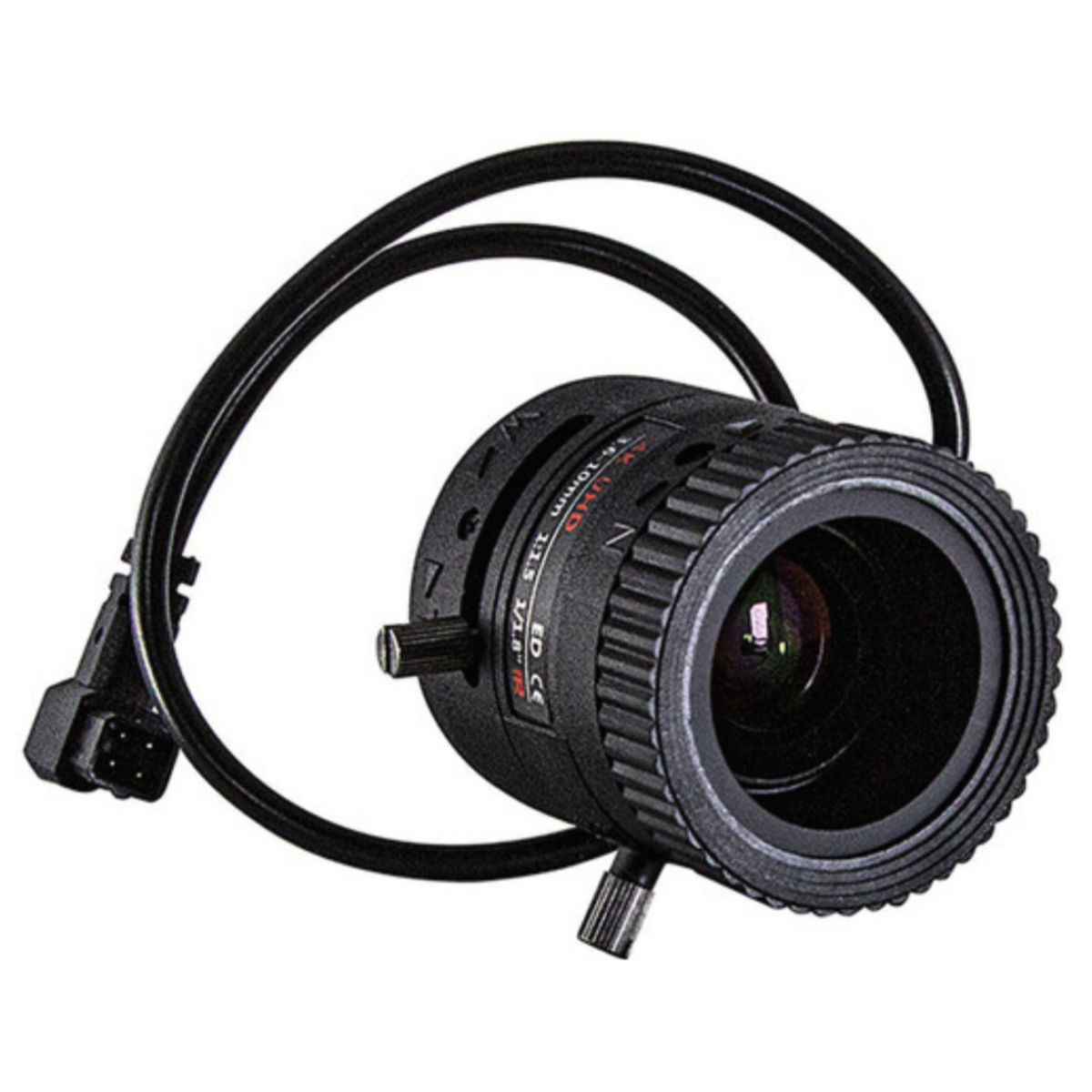

Suitable Lenses
Mounting & Control

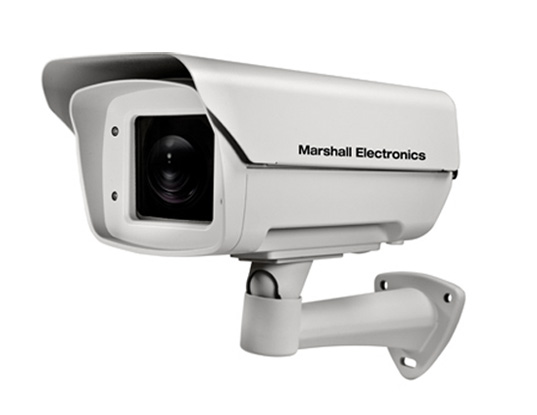

- Protection from rain & dust
- 360° rotatable, 90° tiltable
- for cameras up to 180mm length

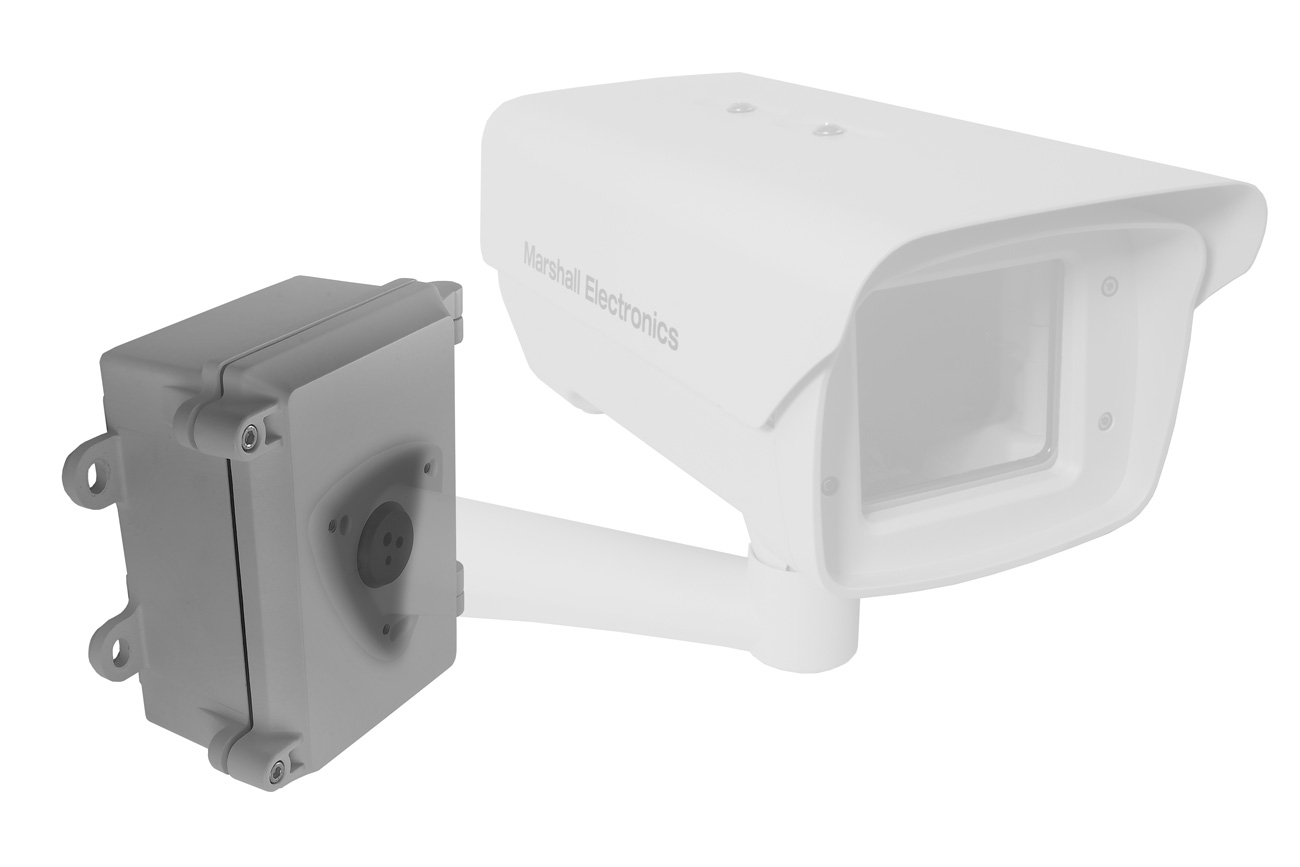

- Wetterfestes Netzteil
- betreibt Lüfter und Heizung von CV-H20-HF & CV-H20-HFH
- Wandhalterung für Mini- und Block-Kameras
- empfohlen als Zubehör für Gelenkarm

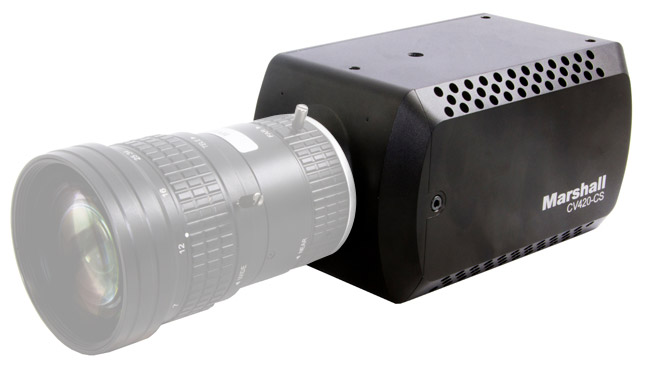

Similar Cameras
