Marshall CV420-CS
Item no longer available
The manufacturer has stopped production. We no longer have stock. You can find the successor model (or comparable products) linked below the description.
Product information "Marshall CV420-CS"
Ultra HD (60fps) Camera with CS Mount
- 12 Megapixel sensor (1/1.7") UHD
- HDR

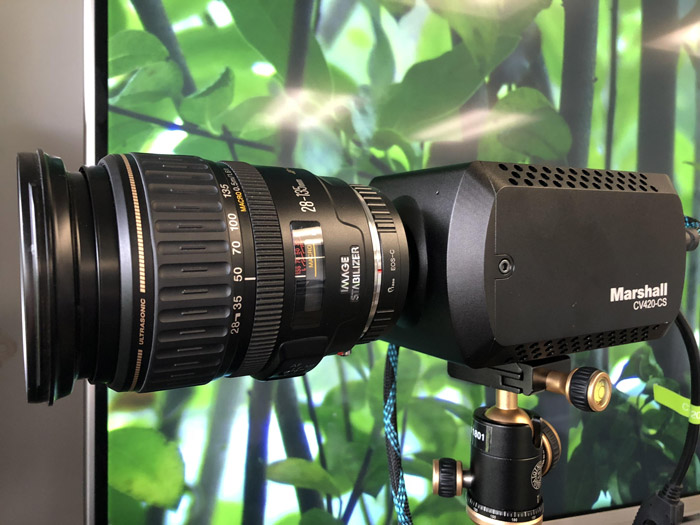

- CS- / C-Mount (lenses available separately in various focal lengths)
- 4096 x 2160p (60 / 29.97 / 25 / 24 / 23.98 fps)
- 3840 x 2160p (60 / 29.97 / 25 / 24 / 23.98 fps)
- 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
- 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

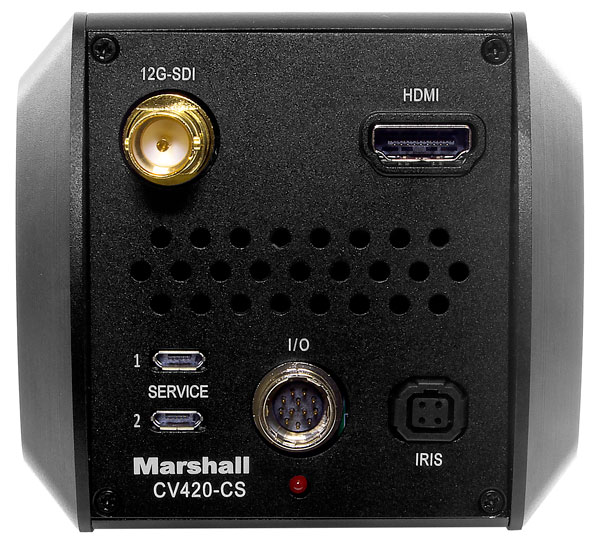

- 12G-SDI
- HDMI
- RS-485 (with clamp connection for 2-pole cabling)
- USB port for firmware updates
- 3.5mm stereo audio input
- DC port for auto iris lenses
- 12V DC for power supply
- versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
- Adjustment via On Screen Menu: by joystick on cable
- Adjustment in live operation: with external control panel via RS-485 (VISCA)
- Compact & robust housing
- 1/4" female thread on the bottom
- 80cm (H) x 85cm (W) x 165cm (D)
- 640g
- Camera
- Breakout cable
- Power supply unit
| Produktgruppe: | Kamera |
|---|---|
| Status der Verfügbarkeit: | EOL (kein Lagerbestand mehr) |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
Mounting & Control

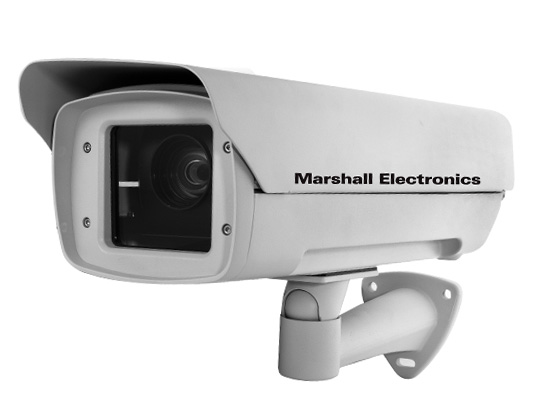

- Protection from rain & dust
