info@vision2see.deMarshall CV346
- Full HD
- 3G-SDI | HDMI
- CS Lens Mount

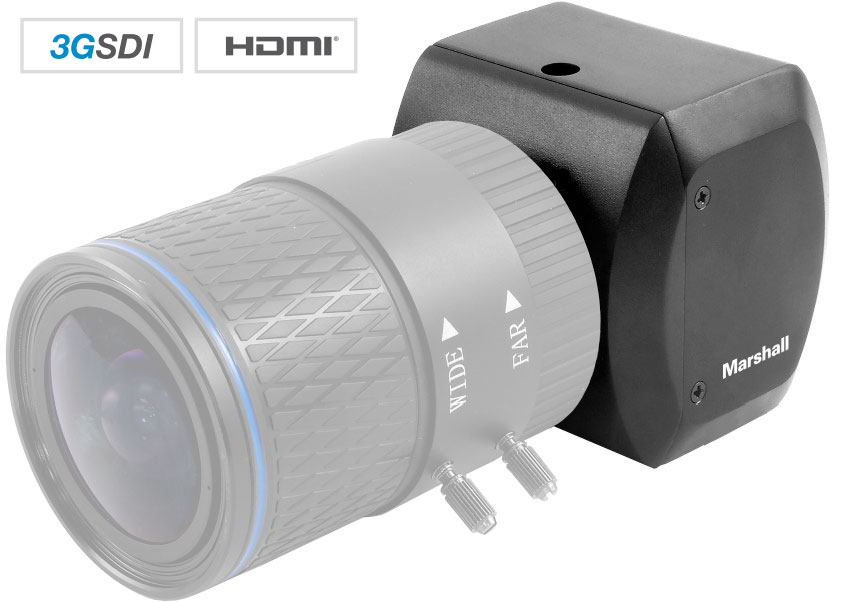

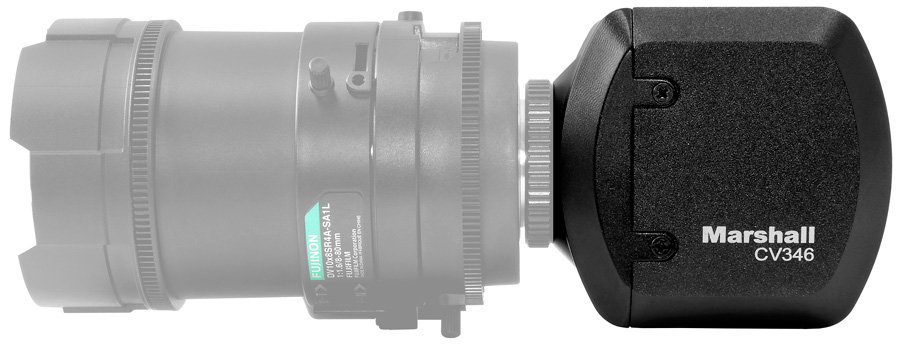

Full HD mini camera with CS mount
- 2.5 Megapixel sensor (1/2.8") Full HD
- CS- / C-mount (lenses sold separately in various focal lengths)
- 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
- 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

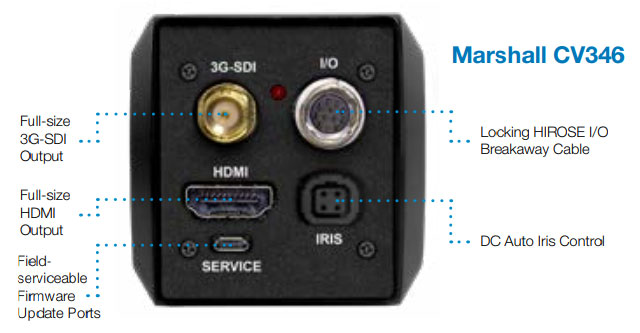

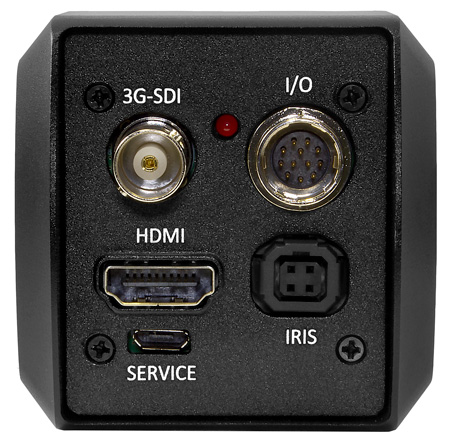

- 3G-SDI
- HDMI
- RS-485 (with clamp connection for 2-pole cabling)
- USB port for firmware updates
- 3.5mm stereo audio input
- DC port for lenses with auto iris
- 12V DC for power supply
- versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
- Adjustment via On Screen Menu: by joystick on cable
- Adjustment in live operation: with external control panel via RS-485 (VISCA)
- Compact & robust housing
- 1/4" female thread on the bottom
- 56mm (H) x 56mm (W) x 59mm (D)
- 160g
- Camera
- Breakout cable
- Power supply unit
| Lens Options: | CS-Mount (interchangeable) |
|---|---|
| Resolution: | Full HD |
| Video Outputs: | HDMI, 3G-SDI |
Videos
