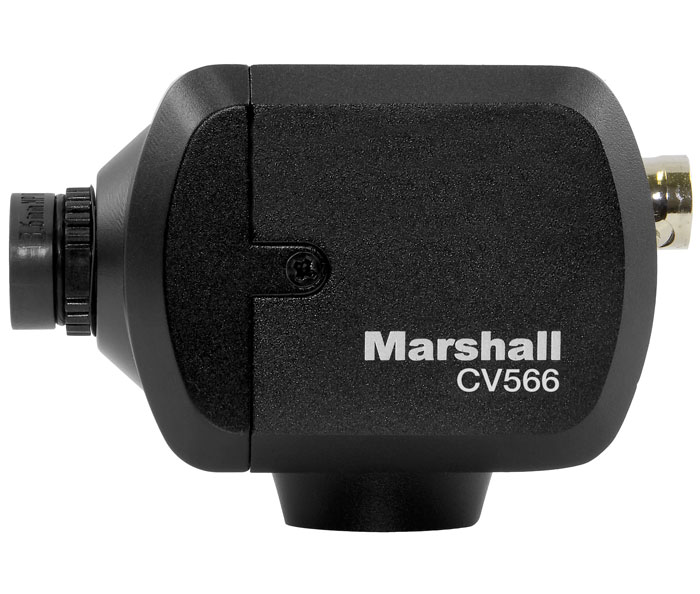

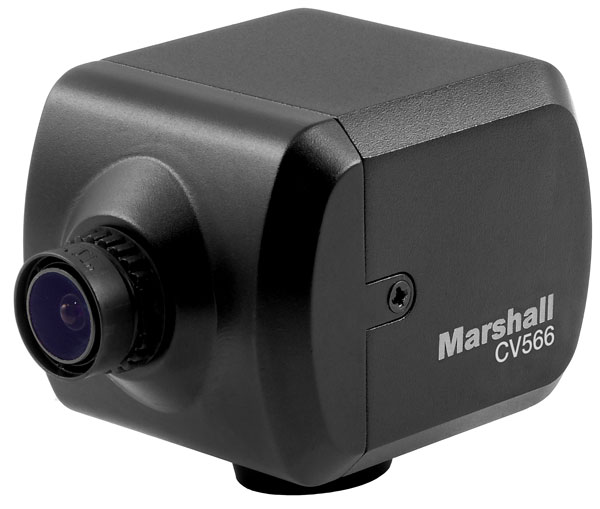

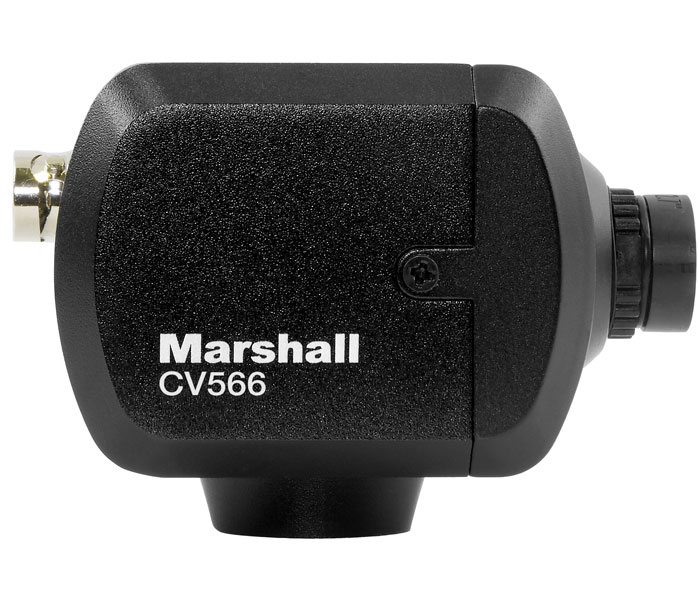

Marshall CV566

Full HD
3G-SDI | HDMI | Genlock
4.4mm lens (interchangeable)

€749.00*

We distribute the articles via selected specialist dealers.

Product number: MACV566

Product information "Marshall CV566"

Full HD Mini Camera with Genlock

With the CV568, you can output video via 3G-SDI and HDMI. The Genlock gives you the ability to synchronise multiple cameras frame-accurately. The included 3.6mm lens can be changed if necessary.

Sensor & Lens

2.2 Megapixel Sony sensor (1/2.8") Full HD
Low-light capable down to 0.05 lux (with nicht mode also in IR range down to 0.001 lux)

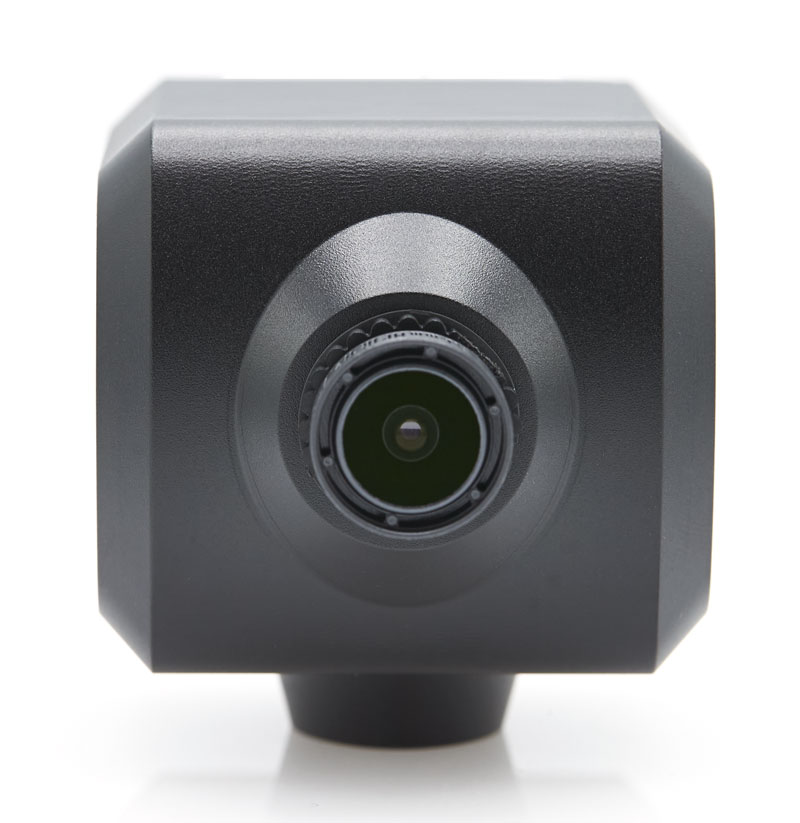

3.6mm lens included (84° horizontal AOV)
M12 lens interchangeable (available in different focal lengths)

Resolution and frame rates

1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
1280 x 720p (60 / 59.94 / 50 fps)

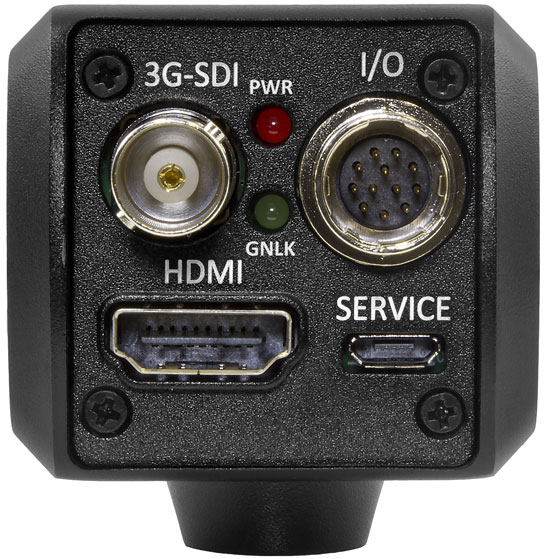

Connections

3G-SDI
HDMI
RS-485 (with terminal connection for 2-pole cabling)
USB port for firmware updates
3.5mm stereo audio input
12V DC

Features

Genlock Tri-Level Sync
versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
Day/Night mode (integrated IR filter can be activated automatically and manually)
Adjustment via on-screen menu: by joystick on cable
Adjustment in live mode: with external control panel via RS-485 (VISCA)
compact & robust housing

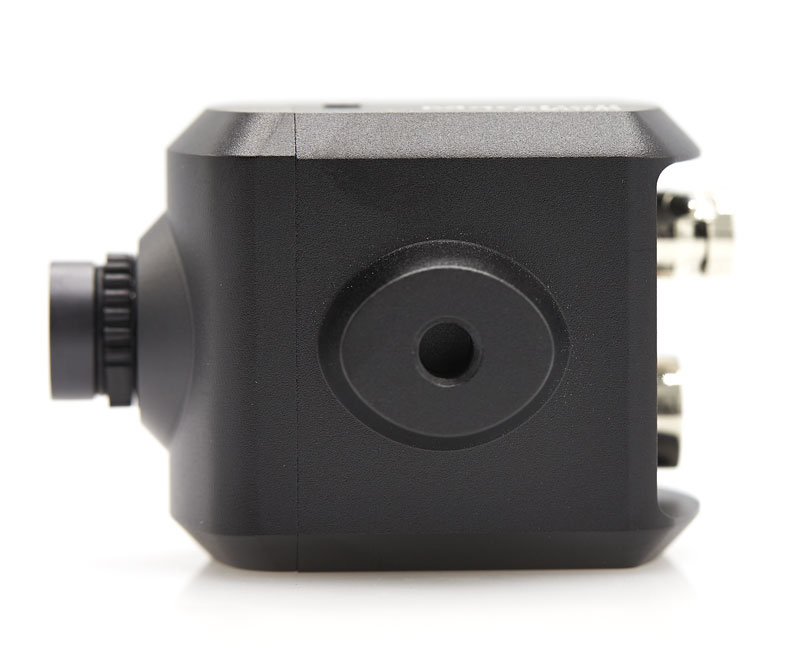

1/4" female thread on the bottom

Power consumption

6W (12V DC / 500mA)

Temperature range

-10°C to +50°C

Dimensions and weight

47mm (H) x 44mm (W) x 56mm (D) (without lens)
115g

Scope of delivery

Camera
3.6mm lens

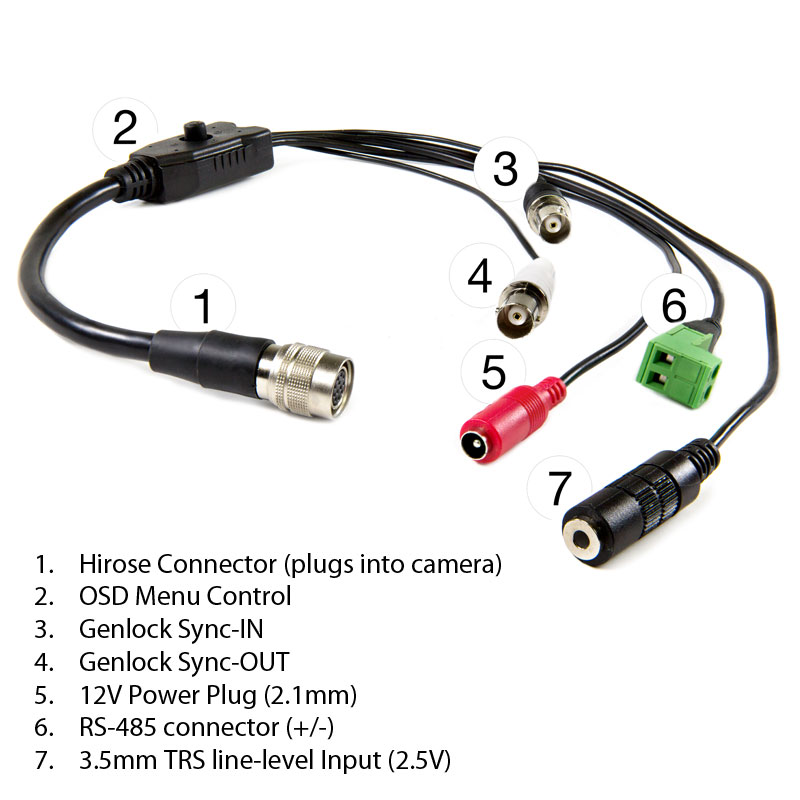

Breakout cable
Power supply unit

Manufacturer's warranty: 2 years

Features:	Genlock
Lens Options:	M12-Mount (interchangeable)
Resolution:	Full HD
Video Outputs:	HDMI, 3G-SDI
