info@vision2see.deMarshall CV508
- Full HD (New Sensor)
- 3G-SDI | HDMI
- 4.0mm Lens (interchangeable)
€549.00

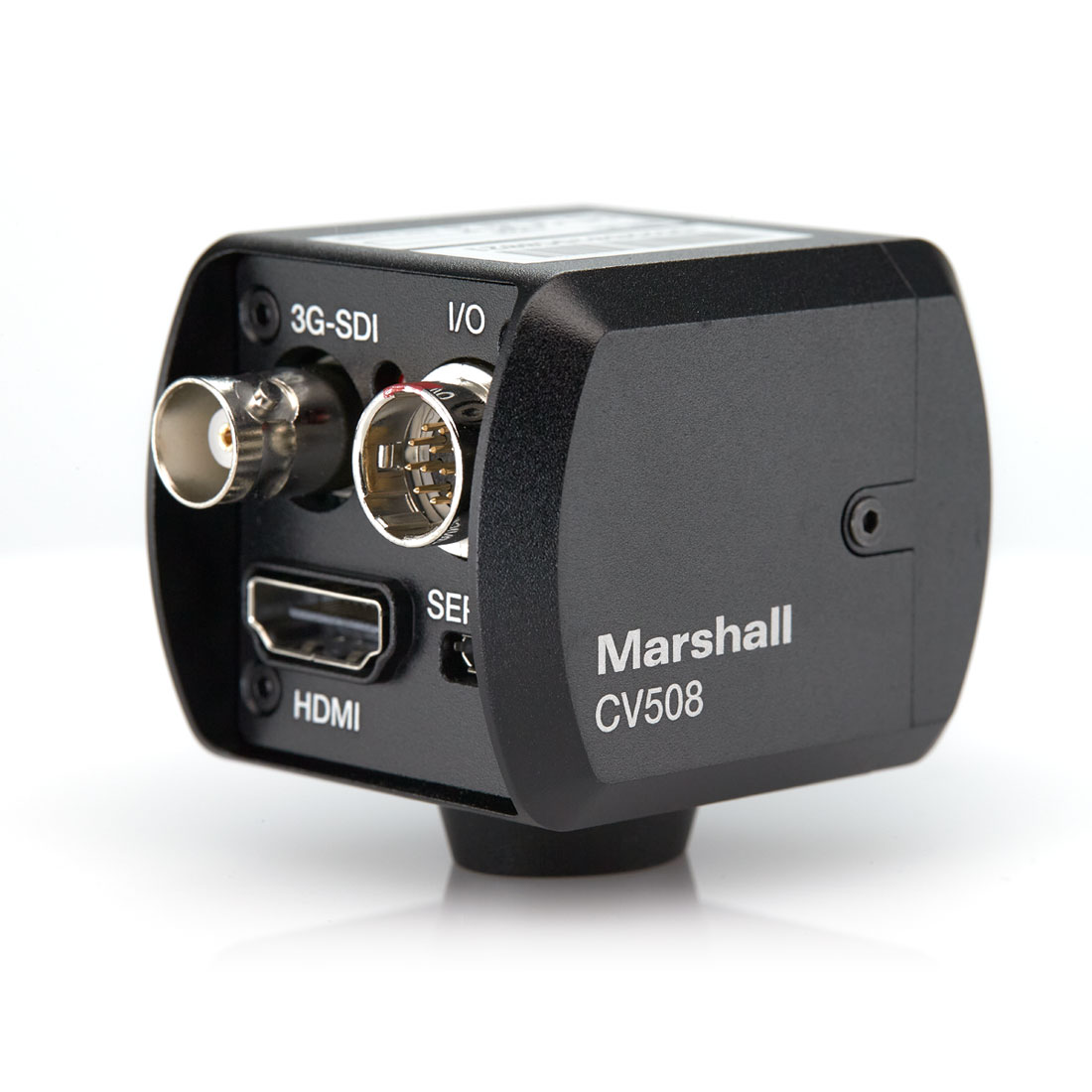

Product information "Marshall CV508"
Full HD mini camera with interchangeable lens
The CV504 is the successor model of the CV503. The essential features are identical. Video can be output simultaneously via HDMI and SDI. However, the sensor has larger pixels.- 2.5 Megapixel (1/2.8 "/ 2.9μm / 4:2:2 color)
- 4.0mm lens included (85° horizontal AOV)
- M12 lens interchangeable (available in various focal lengths)
- 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
- 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

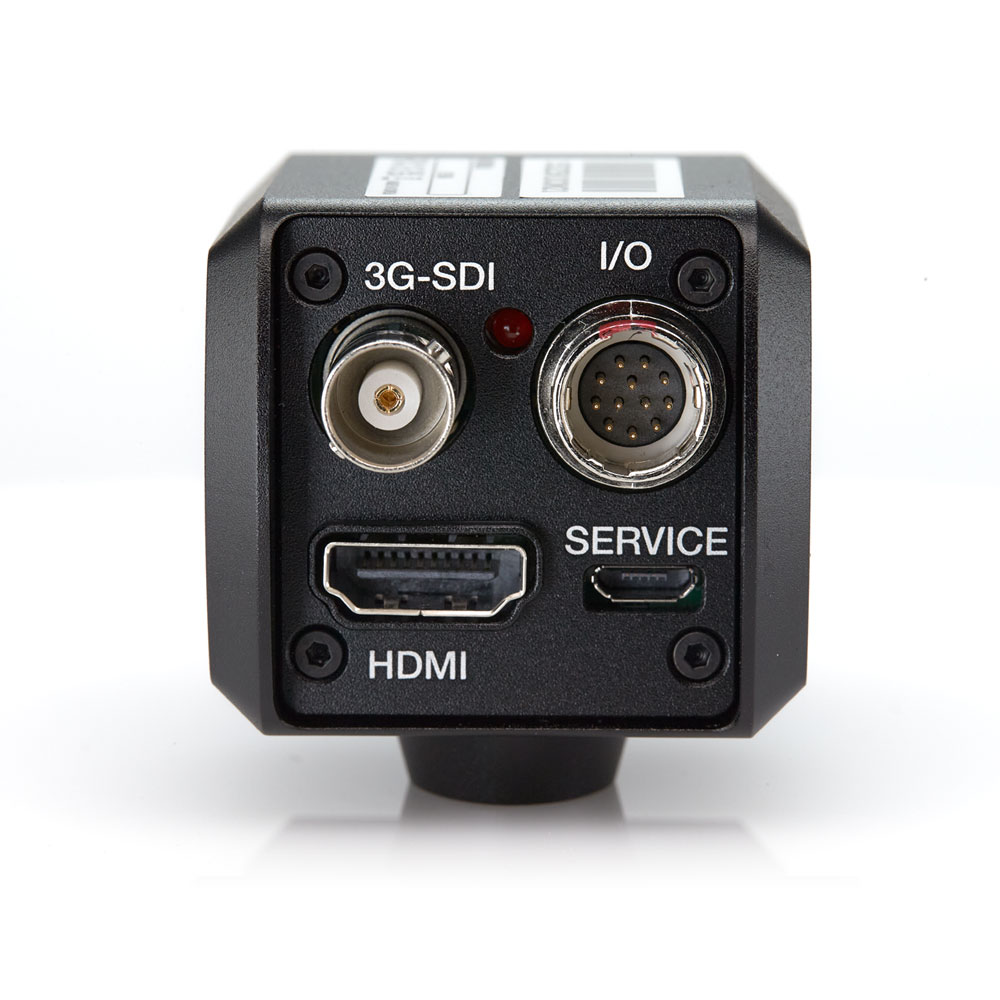

- 3G-SDI
- HDMI
- RS-485 (with clamp connection for 2-pole cabling)
- USB port for firmware updates
- 3.5mm stereo audio input
- 12V DC
- versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
- Day/Night mode (automatic and manual selectable)
- Adjustment via On Screen Menu: by joystick on cable
- Adjustment in live mode: with external control panel via RS-485 (VISCA)
- Compact & robust housing

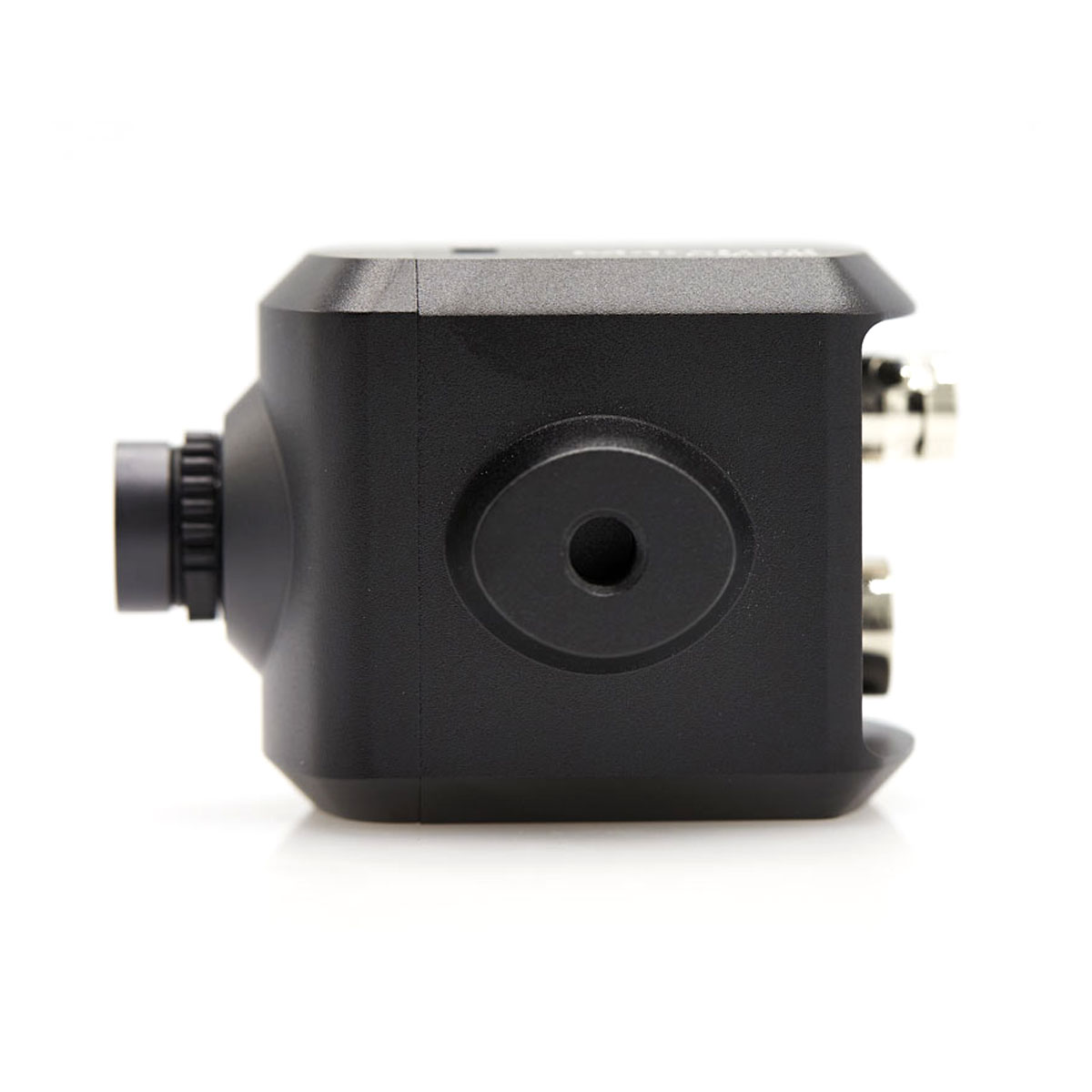

- 1/4" female thread on the bottom
- 6W (12V DC / 500mA)
- 47mm (H) x 44mm (W) x 56mm (D)
- 110g
- Camera
- 4.0mm lens
- Breakout cable
- Power supply unit
| Lens Options: | M12-Mount (interchangeable) |
|---|---|
| Resolution: | Full HD |
| Video Outputs: | HDMI, 3G-SDI |
Videos
Login
Herstellerinformationen
Marshall Electronics Inc.
20608 Madrona Avenue
Torrance CA 90503
USA
Support@marshall-usa.com
https://marshall-usa.com/
Importeur
VISION2see GmbH
Bajuwarenring 14
82041 Oberhaching
+49 89 693 991 50
info@vision2see.de
Suitable Lenses
-
M12-Mount | 8MP
- 4.0mm Festbrennweite
- Öffnungswinkel: ca. 85°
-
M12-Mount | 8MP
- 8.0mm Festbrennweite
- Öffnungswinkel: ca. 62°
-
M12-Mount | 8MP

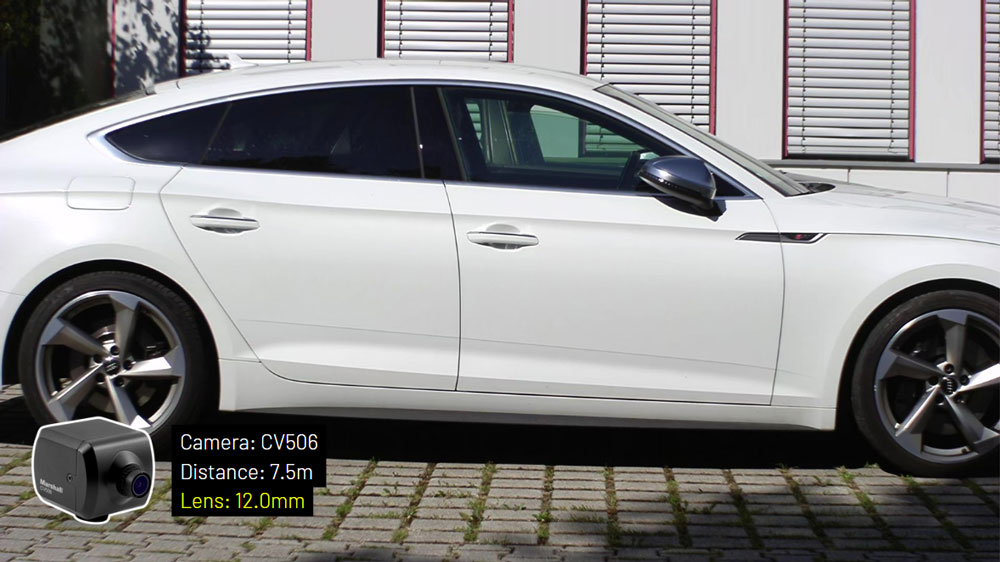

- 12.0mm Festbrennweite
