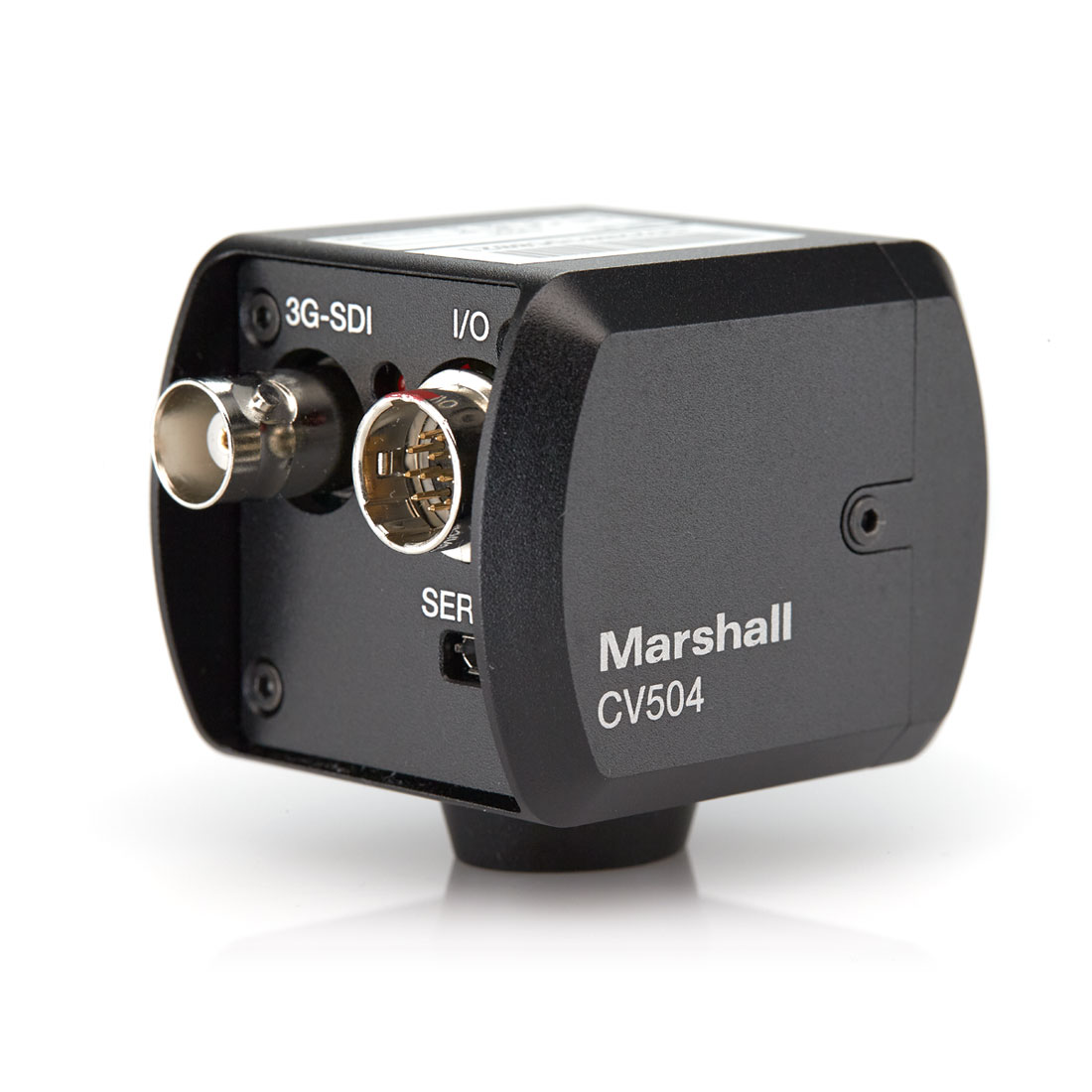

info@vision2see.deMarshall CV504
- Full HD (New Sensor)
- 3G-SDI
- 4.0mm lens (interchangeable)
Full HD mini camera with interchangeable lens
The CV504 is the successor model of the CV503. The essential features are identical. The sensor has larger pixels.- 2.5 Megapixel (1/2.8 "/ 2.9μm / 4:2:2 color)
- 4.0mm lens included (85° horizontal AOV)
- M12 lens interchangeable (available in various focal lengths)
- 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
- 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

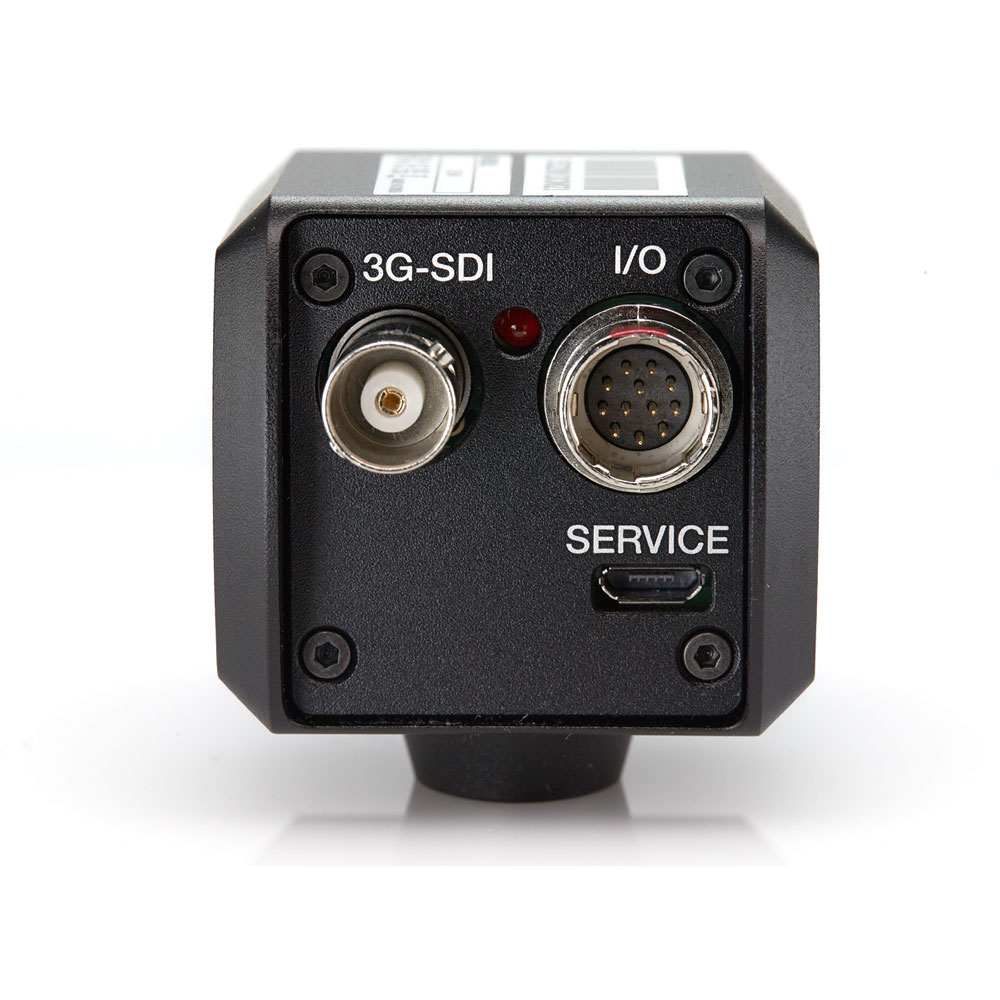

- 3G-SDI
- RS-485 (with terminal connection for 2-pole cabling)
- USB port for firmware updates
- 3.5mm stereo audio input
- 12V DC
- versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
- Day/Night mode (automatic and manual selectable)
- Adjustment via On Screen Menu: by joystick on cable
- Adjustment in live mode: with external control panel via RS-485 (VISCA)
- Compact & robust housing

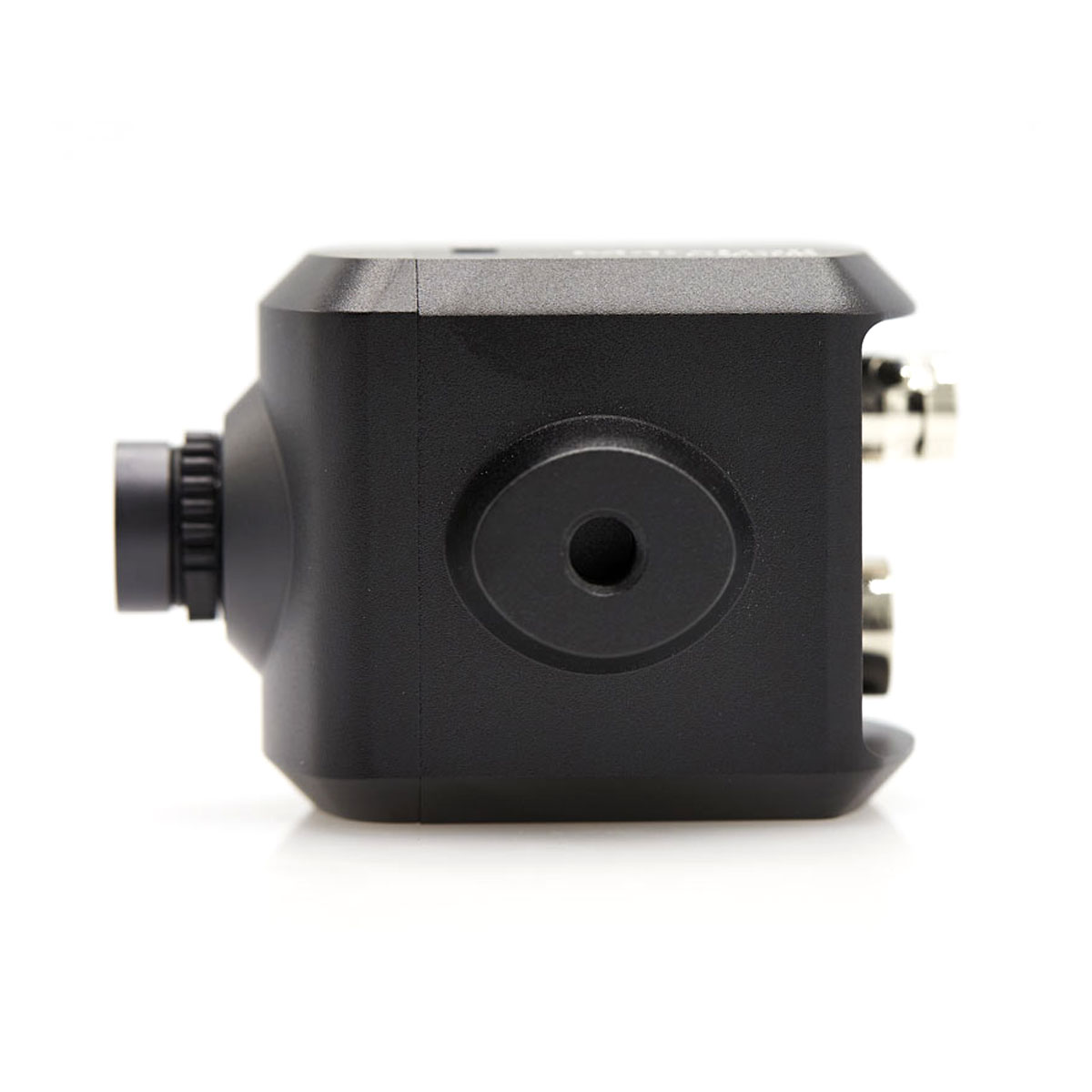

- 1/4" female thread on the bottom
- 6W (12V DC / 500mA)

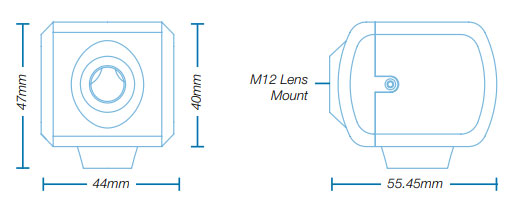

- 47mm (H) x 44mm (W) x 56mm (D)
- 110g
- Camera
- 4.0mm lens

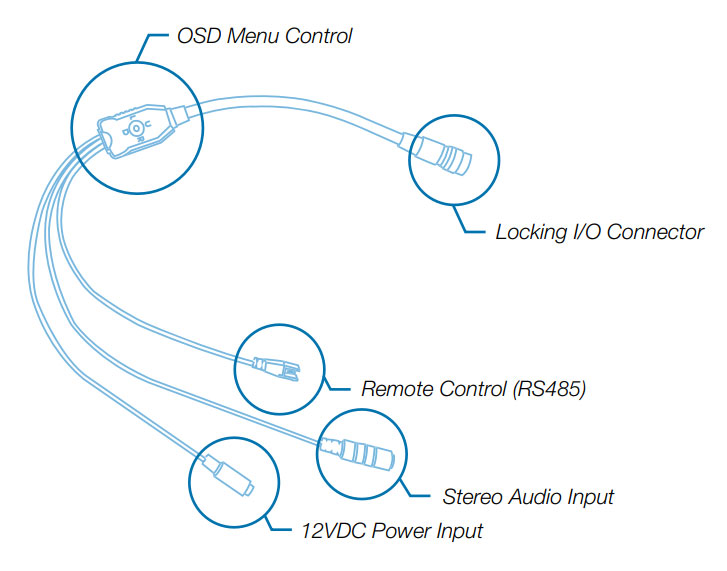

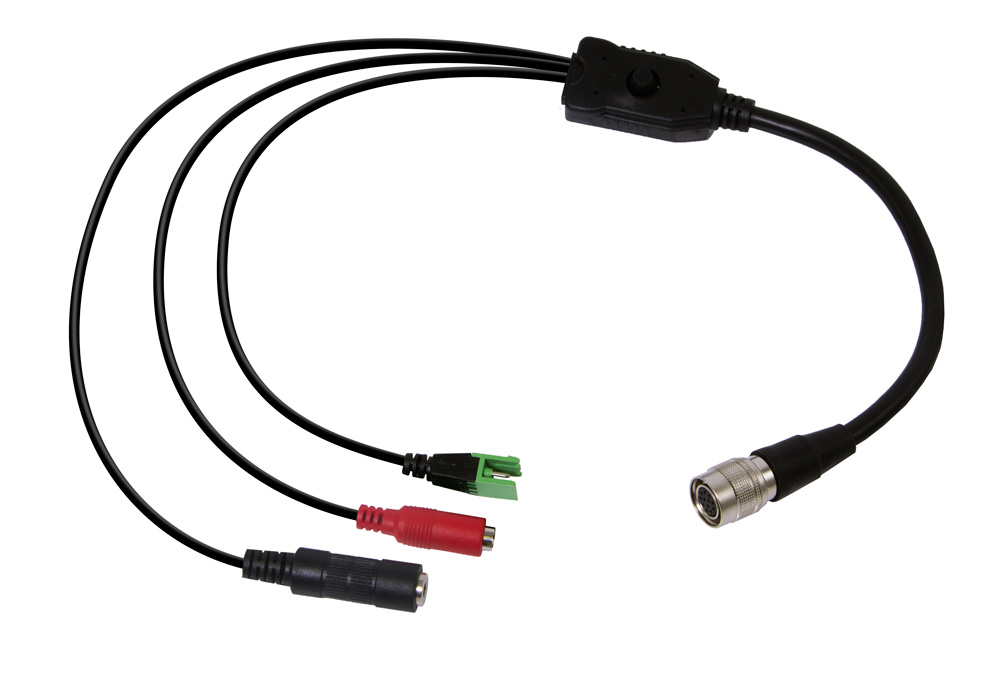

- Breakout cable
- Power supply unit
| Lens Options: | M12-Mount (interchangeable) |
|---|---|
| Resolution: | Full HD |
| Video Outputs: | 3G-SDI |
Videos
Login

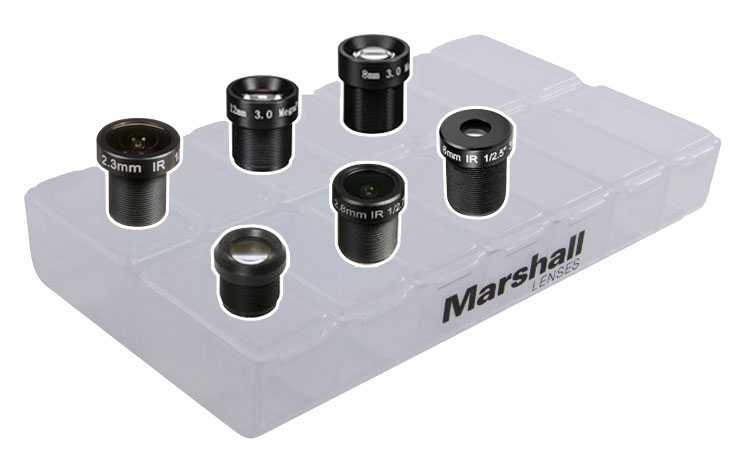

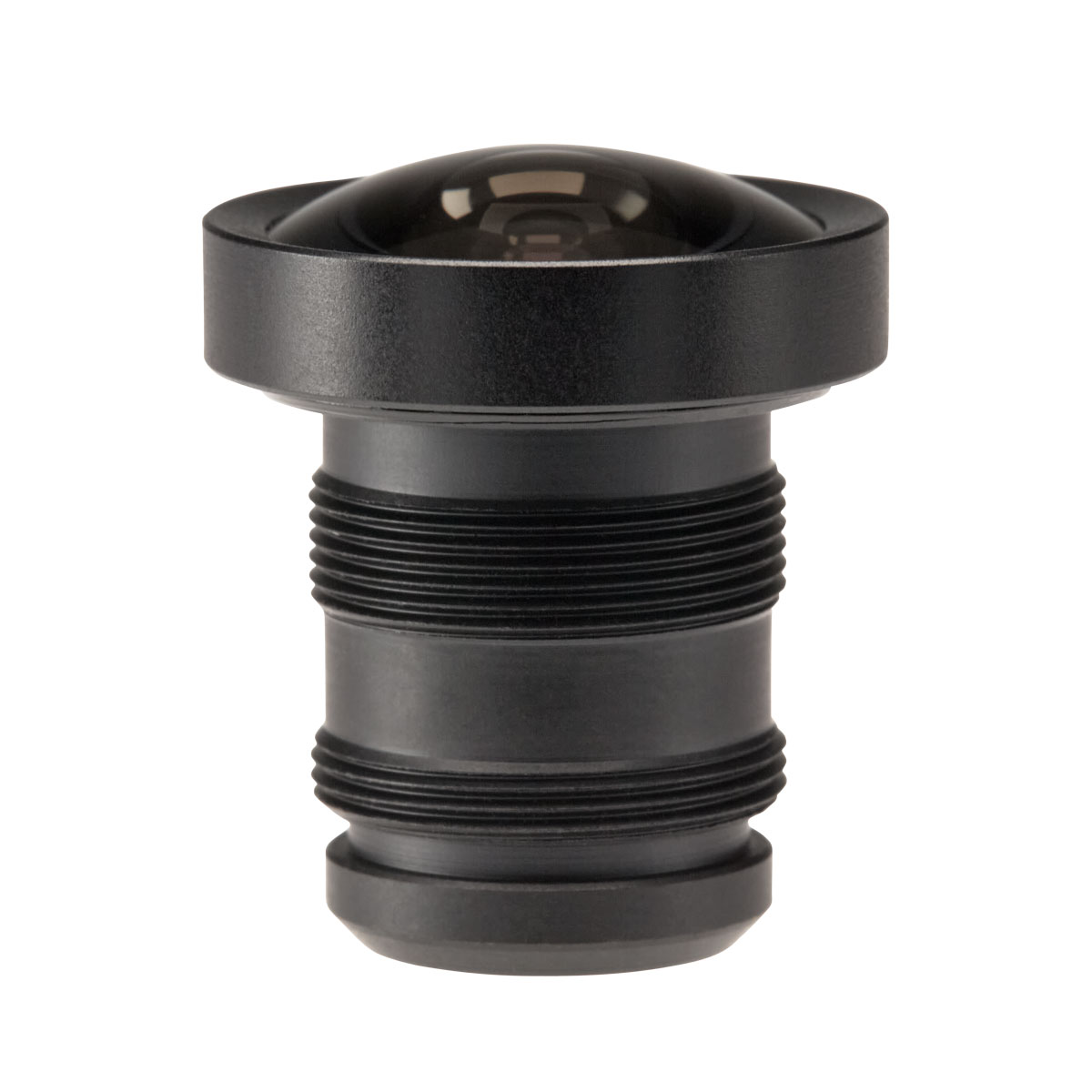

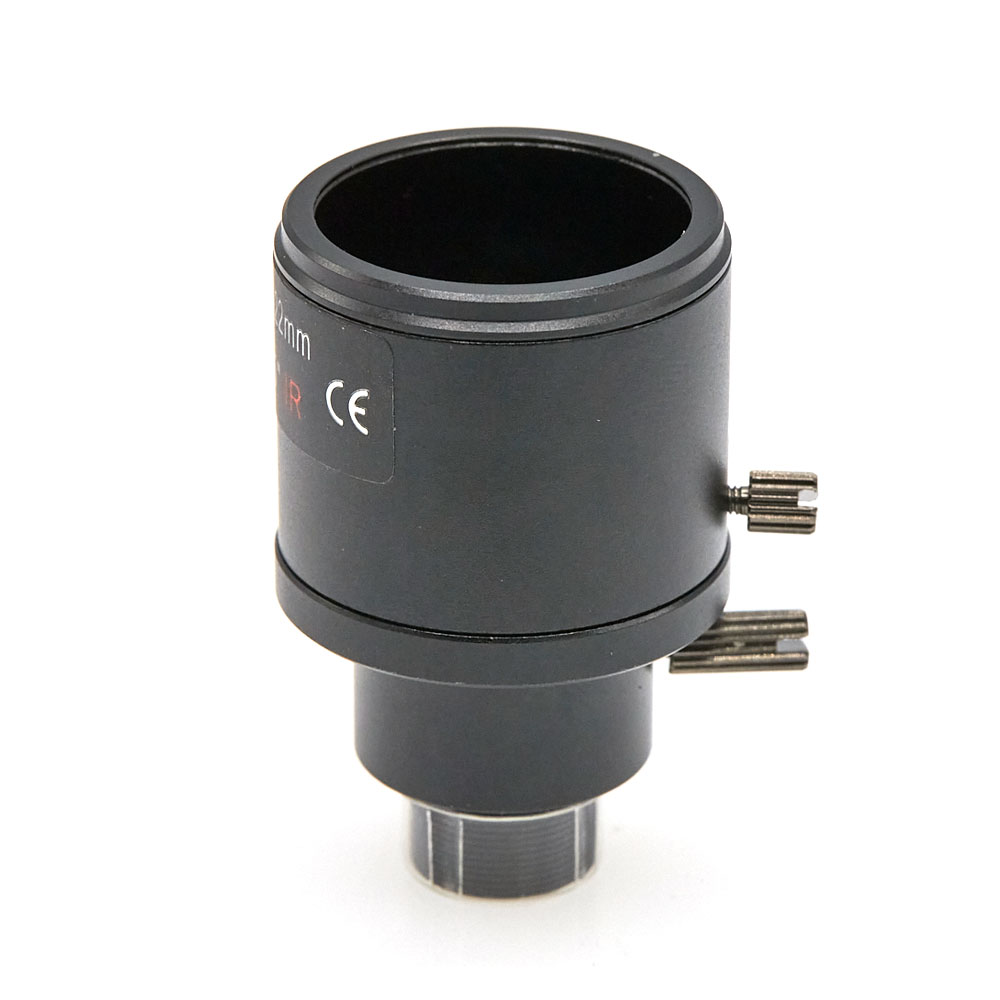

Suitable Lenses
- ND filter for a clear image during strong dazzling light
- for camera CV226
- ND filter for a clear image during strong dazzling light
- for camera CV503-WP

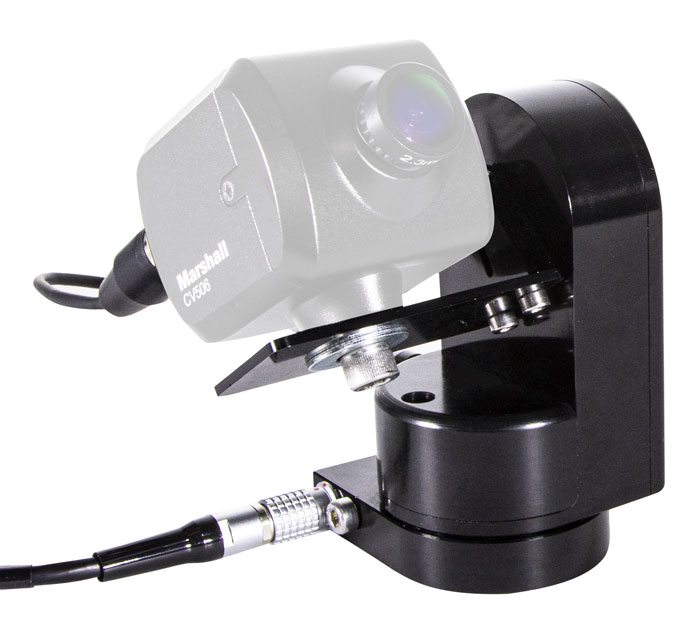

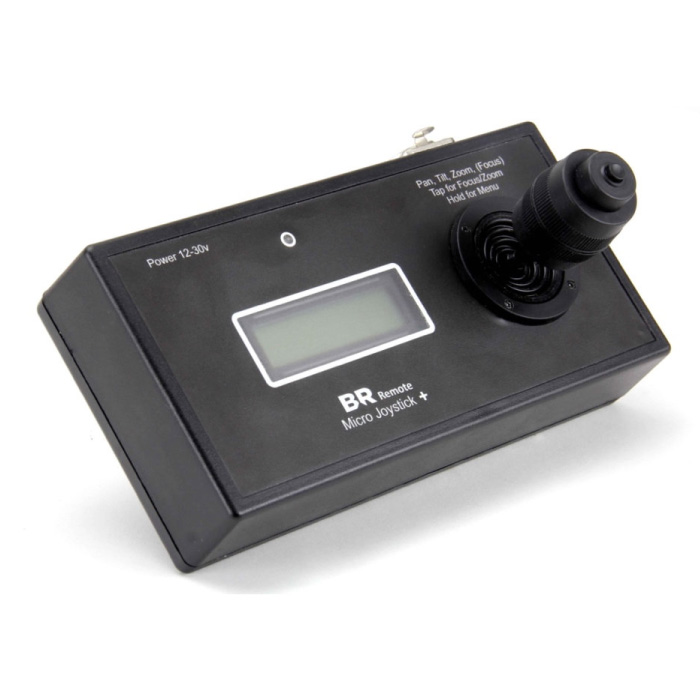

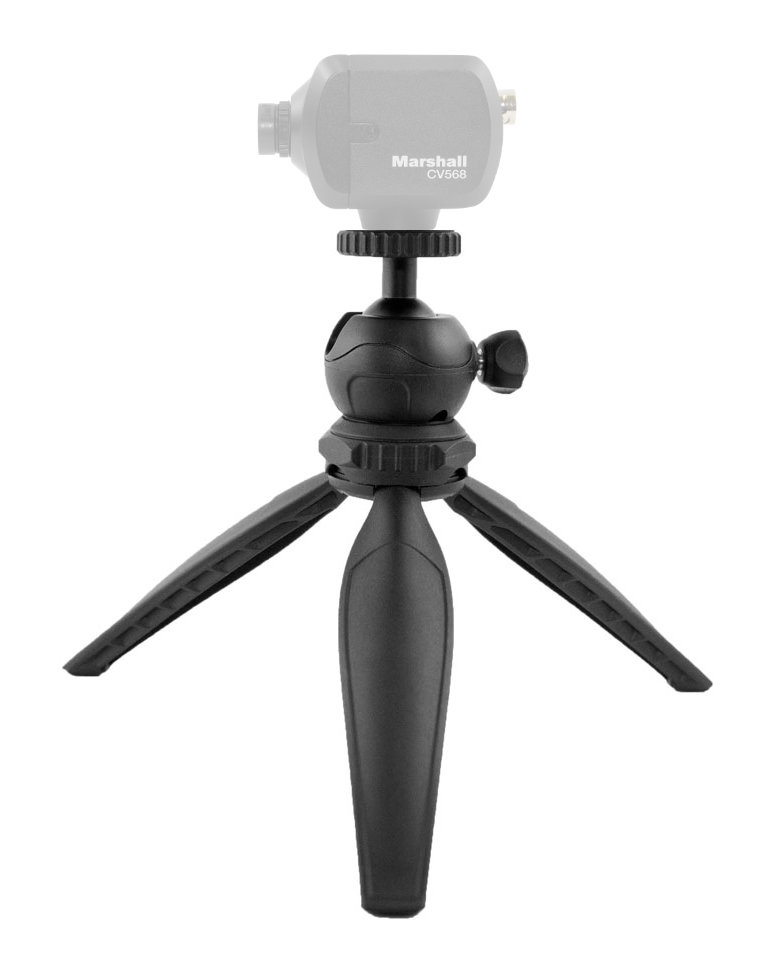

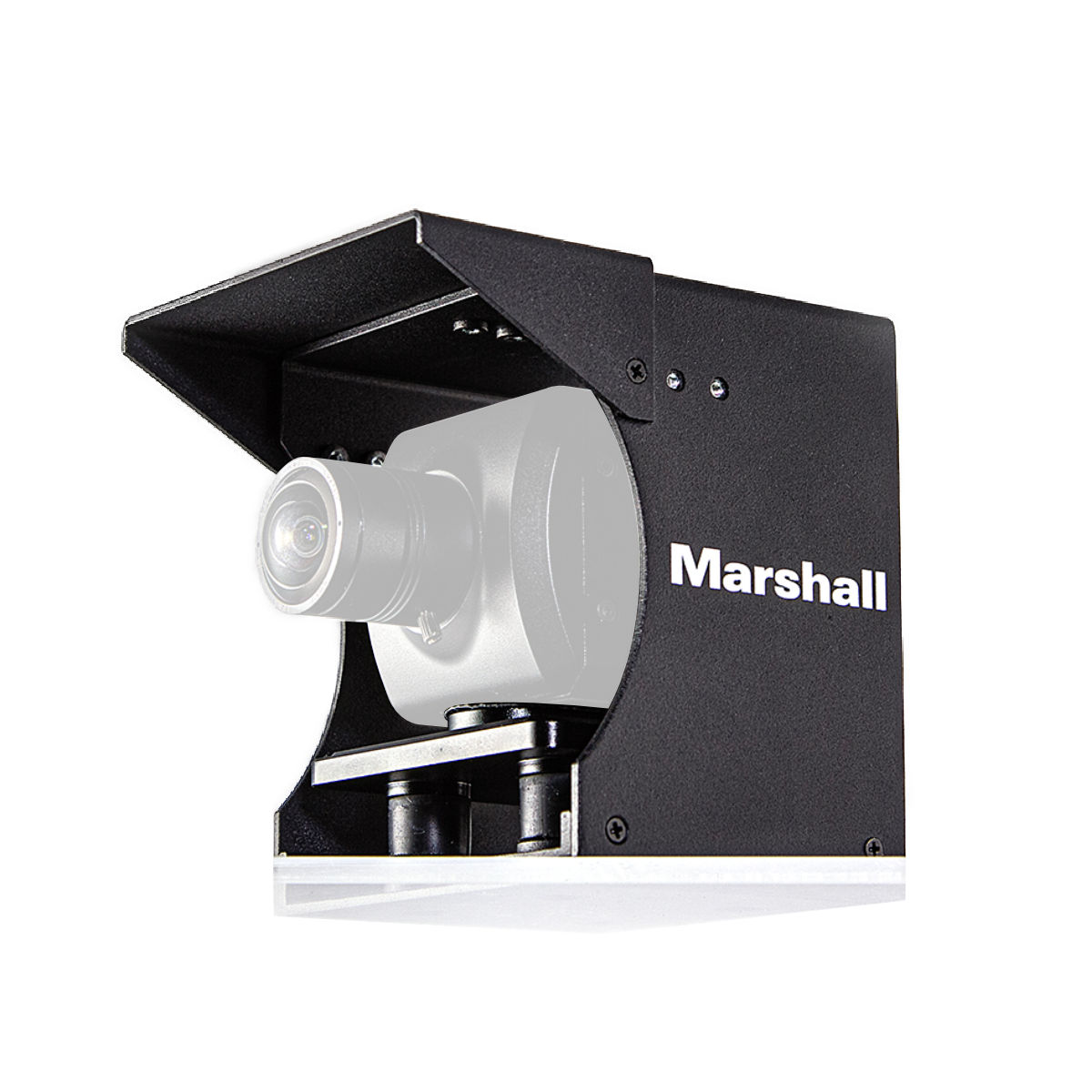

Mounting & Control

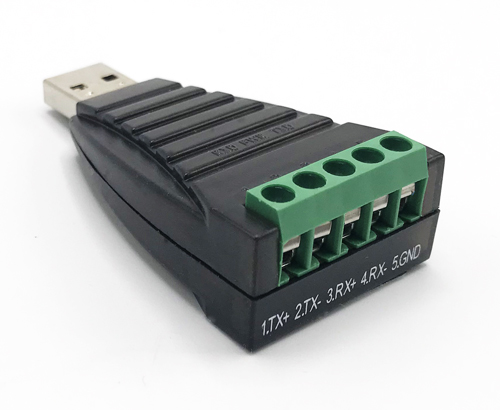

- Adapter RS485 / RS422 auf USB
