info@vision2see.deMarshall CV730-BHN / -WHN
- Ultra HD | 12G-SDI | HDMI
- NDI High Bandwidth | HX3
- 30x Zoom
Product number:
MACV730BHN

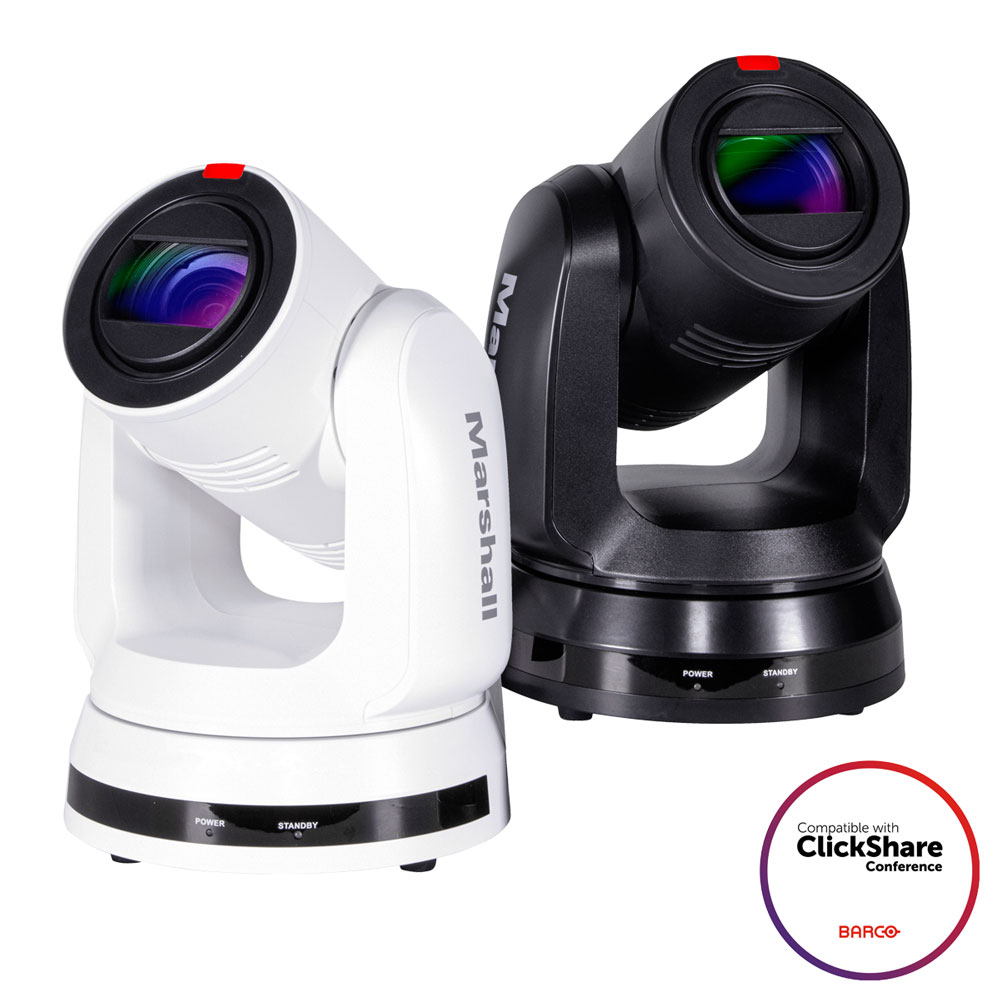

Product information "Marshall CV730-BHN / -WHN"
UHD PTZ Kamera with High Bandwidth NDI
NEW! Now with NDI High Bandwidth, NDI|HX3, IP (HEVC & SRT) and Genlock.
Release at the NAB Show in Las Vegas - available from July 2022
The camera is available in two versions:
- Black (CV730-BHN)
- White (CV730-WHN)
Sensor & Lens
- 9 Megapixel Sony IMX334 Sensor (1/1.8") UHD
- 30x Optical Zoom (6.5~202mm) - 65° horizontal AOV
- Minimum Illumination: 0.1 lux (F1.6, 50IRE, 30fps)
Resolution and Frame Rates
- 3840 x 2160p (60 / 59.94 / 50 / 29.97 /25 fps)
- 1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
- 1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)
Setting options:
- mechanically via rotary control on the rear side
- Web- / NDI-Interface
- On-Screen-Menu with IR remote
Connectivity
- RS-485 (NDI / Ethernet)
- 12G-SDI and additional 3G-SDI
- HDMI 2.0
- RS232 in / out
- RS422
- 3.5mm Audio Input
Features
- NDI High Bandwidth
- NDI|HX3 (Premium HX)
- IP (H.265/H.264/MJPEG)
- PoE++ (Simultaneous transmission of video & control signals and power supply via one CAT cable)
- Front Tally Light

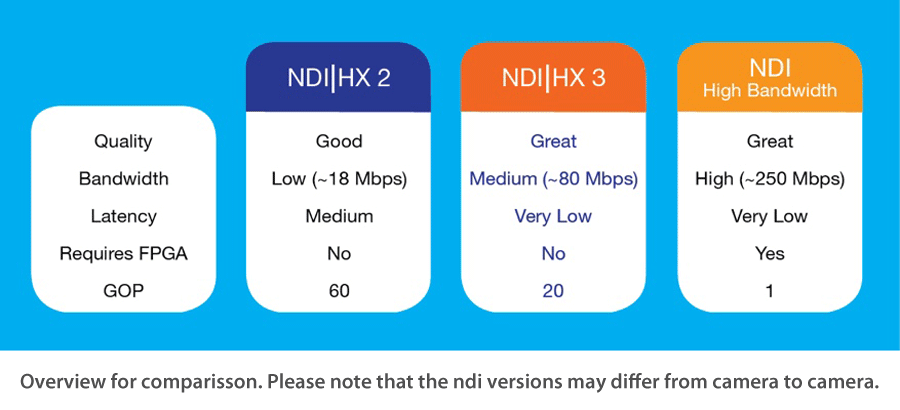

Overview of NDI and the formats
With the NDI (Network Device Interface) software, NewTek has developed a system for the transmission, control and output of video content. For example, PTZ cameras, joystick controllers and video mixers can be connected via a network.
The big challenge is to output video in high quality with the lowest possible delay. Since the technical possibilities can vary greatly depending on the infrastructure, NewTek has developed various formats for compression.
Here is a comparison of the available formats:
NDI High Bandwidth
- Video Quality: Great
- Required Bandwidth: High
- Latency: Very Low
- FPGA required: Yes
NDI HX3
- Video Quality: Great
- Required Bandwidth: Medium
- Latency: Very Low (only 8ms higher than with Full Bandwidth)
- FPGA required: No
NDI HX (not possible with this model. Matching cameras linked below)
- Video Quality: Good
- Required Bandwidth: Low
- Latency: Medium
- FPGA required: No
Tip: matching network switchers from NETGEAR are also available from us. (Linked below)
Dimensions & Weight
- 235mm (H) x 190mm (B) x 190mm (T)
- 2.025g
Scope of Delivery
- Camera
- Adapter plate for ceiling mounting
- Infrared remote control
- Power supply unit & IEC cable
Warranty: 3 Years
| Features: | NDI, PoE |
|---|---|
| Resolution: | Full HD, Ultra HD / 4K |
| Video Outputs: | HDMI, 12G-SDI, IP (H.264/H.265), NDI (Full Bandwidth) |
| Zoom Range: | 30x |
