Marshall CV605-U3/-U3W

  • Full HD
  • 3G-SDI | IP | PoE
  • 5x Zoom

€849.00*

Product number: MACV605U3/MACV605U3W
Product information "Marshall CV605-U3/-U3W"

Compact PTZ camera for small studios

Just like the CV605-BK, the CV605-U3 is ideal for small studios with high quality requirements. You can output video via USB, HDMI and IP.  The high-quality 5x zoom lens has a particularly large aperture angle of up to 85°. This gives you the opportunity to capture a large image section at short distance.

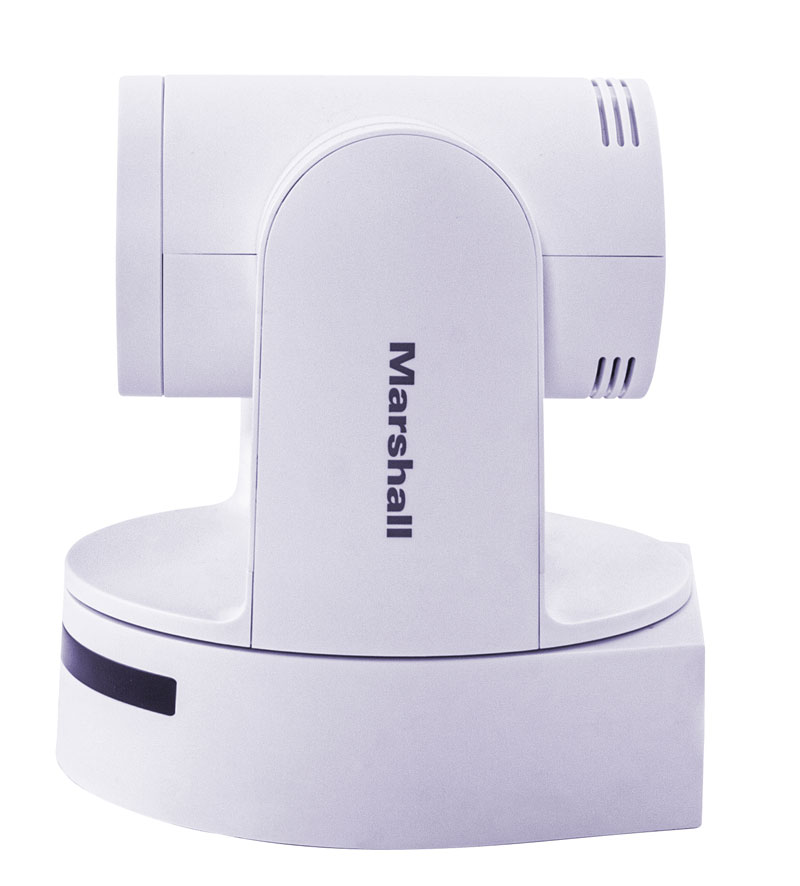

The camera is available in two colours

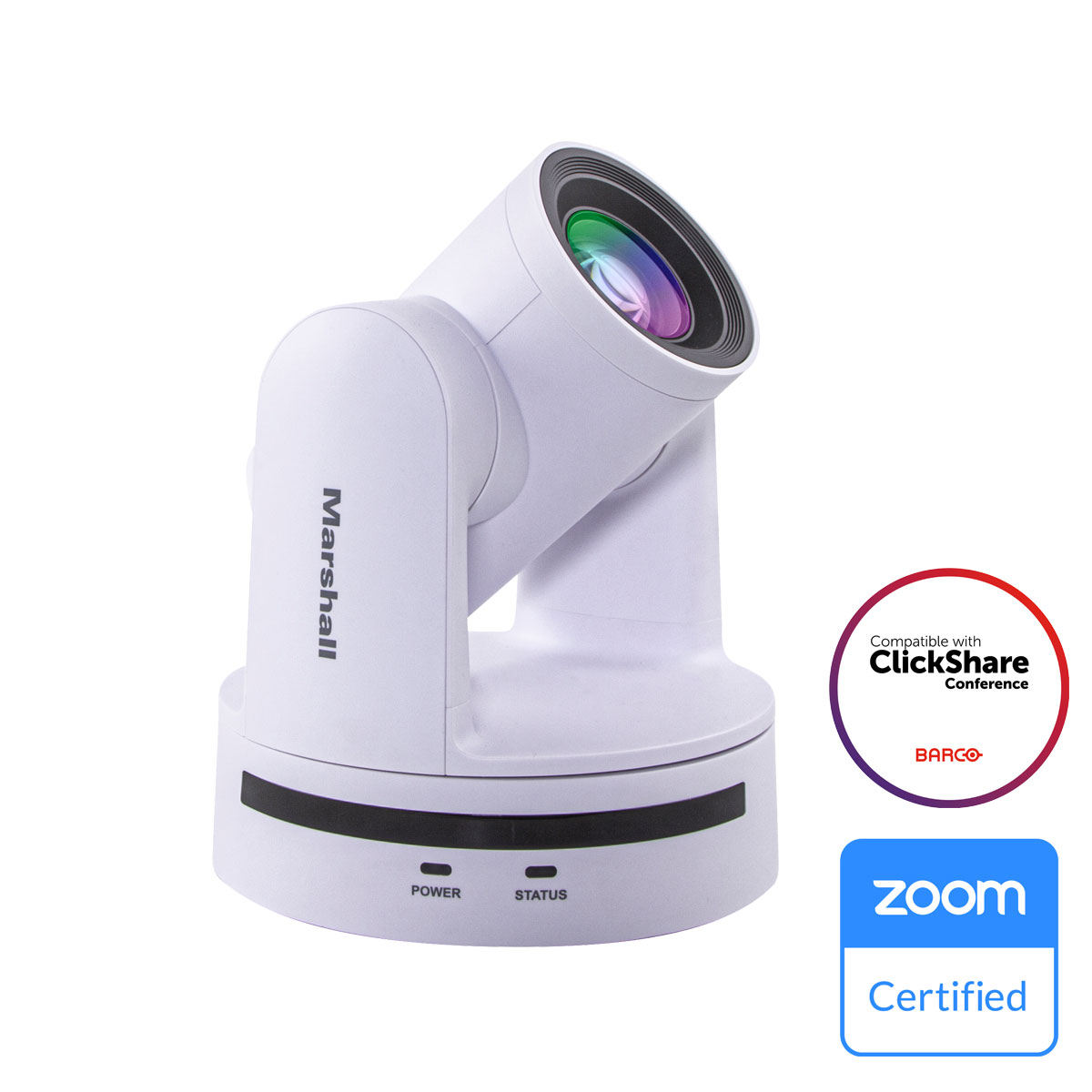

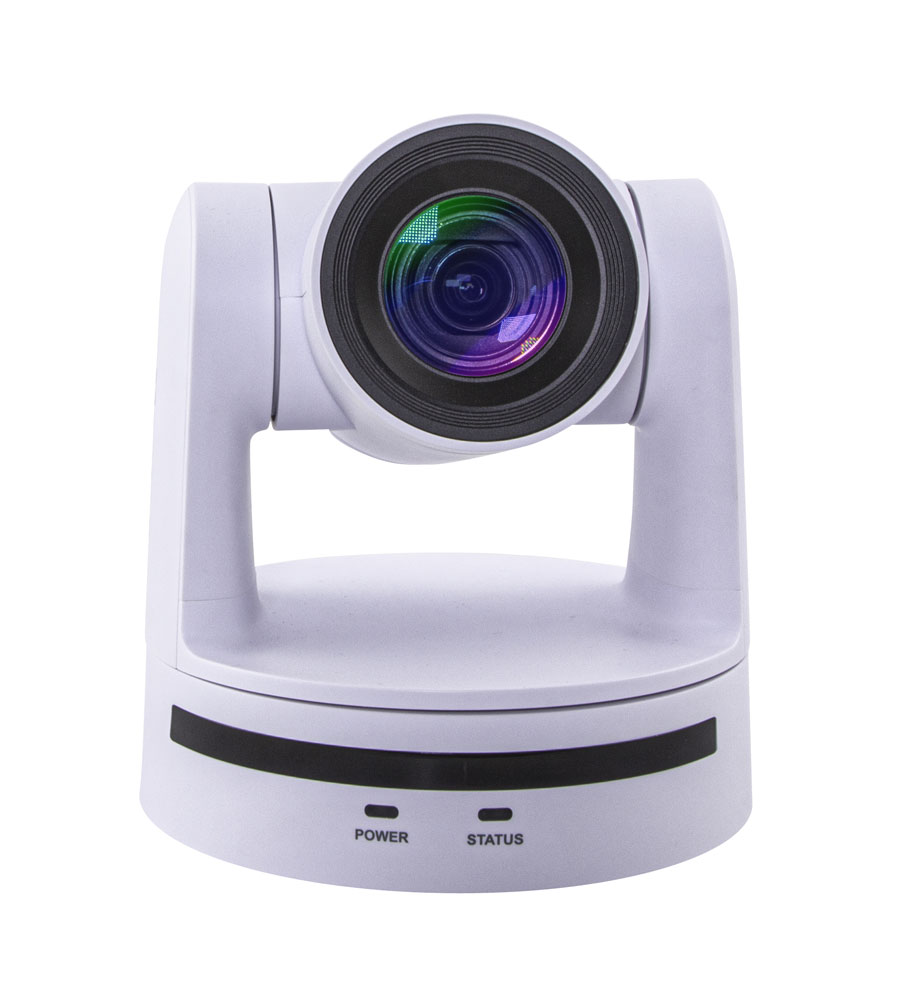

  • White (CV605-U3W)

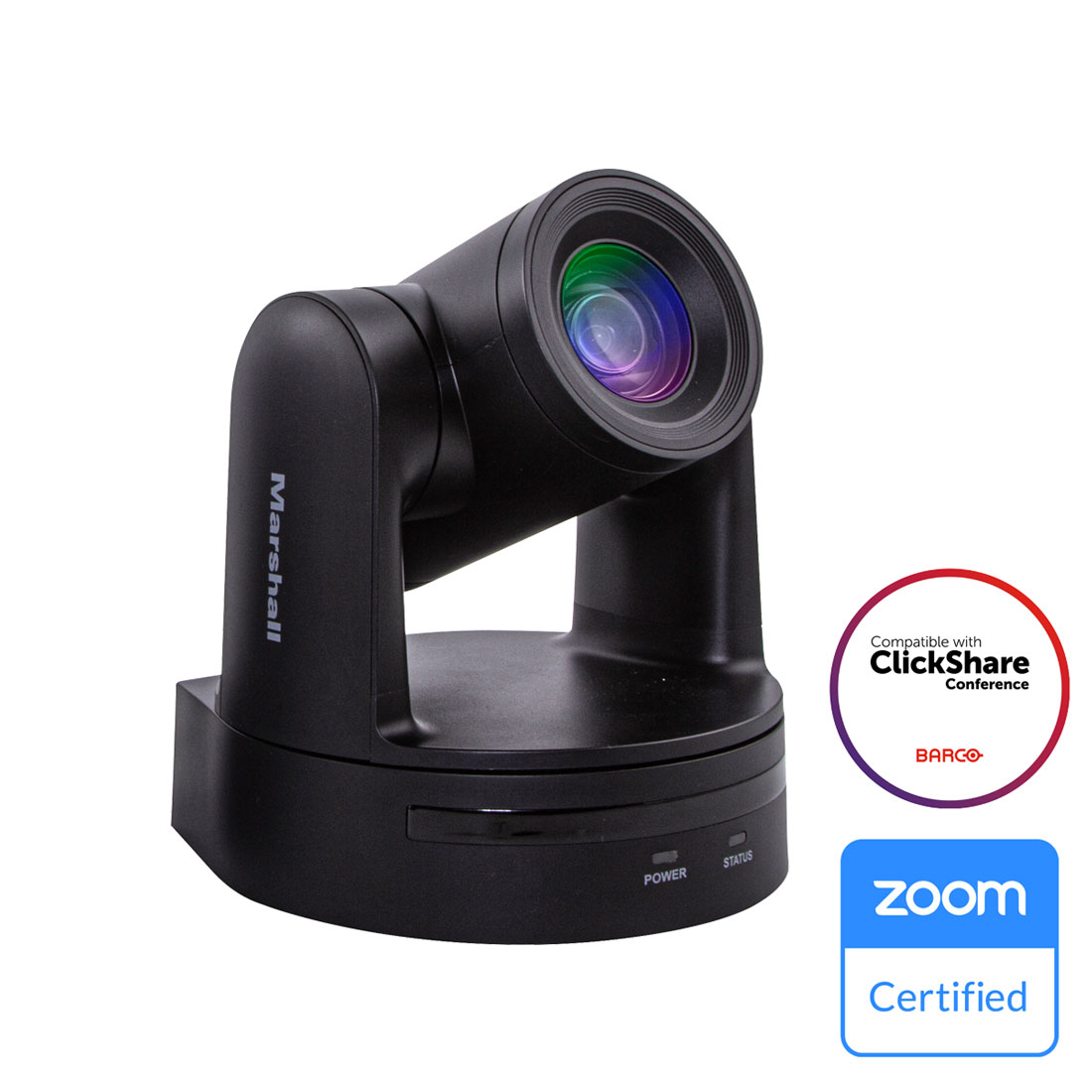

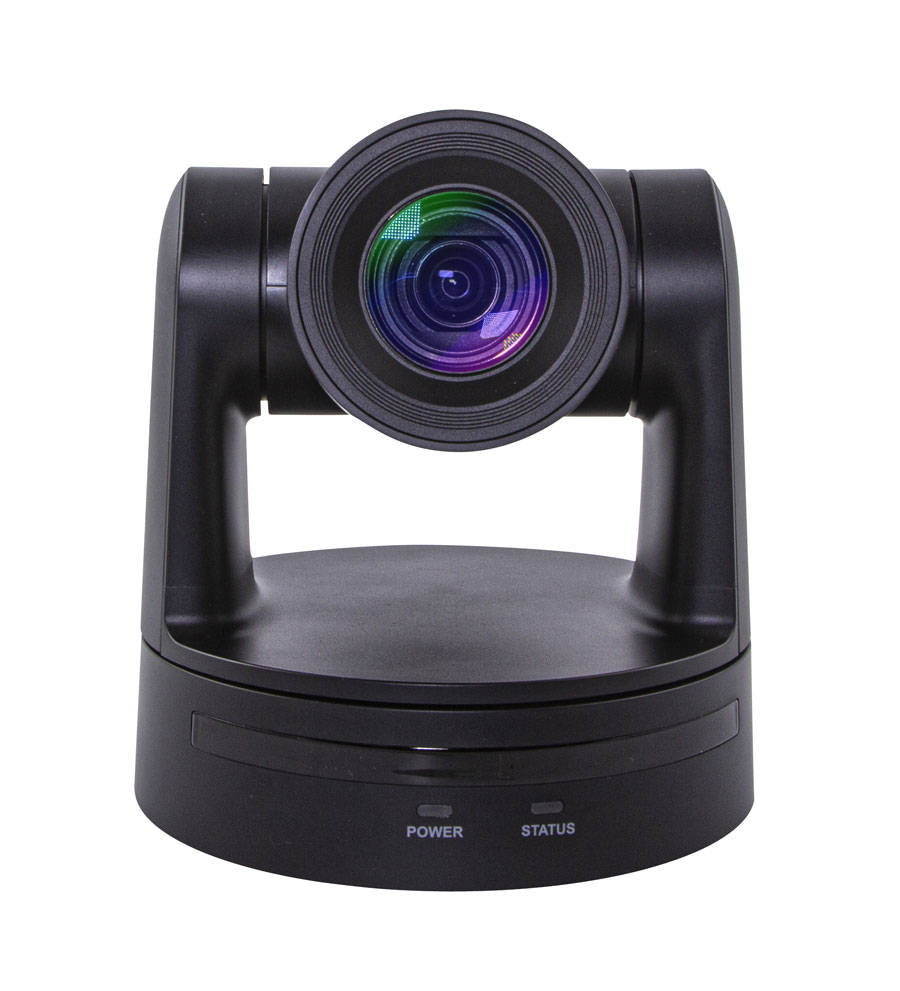

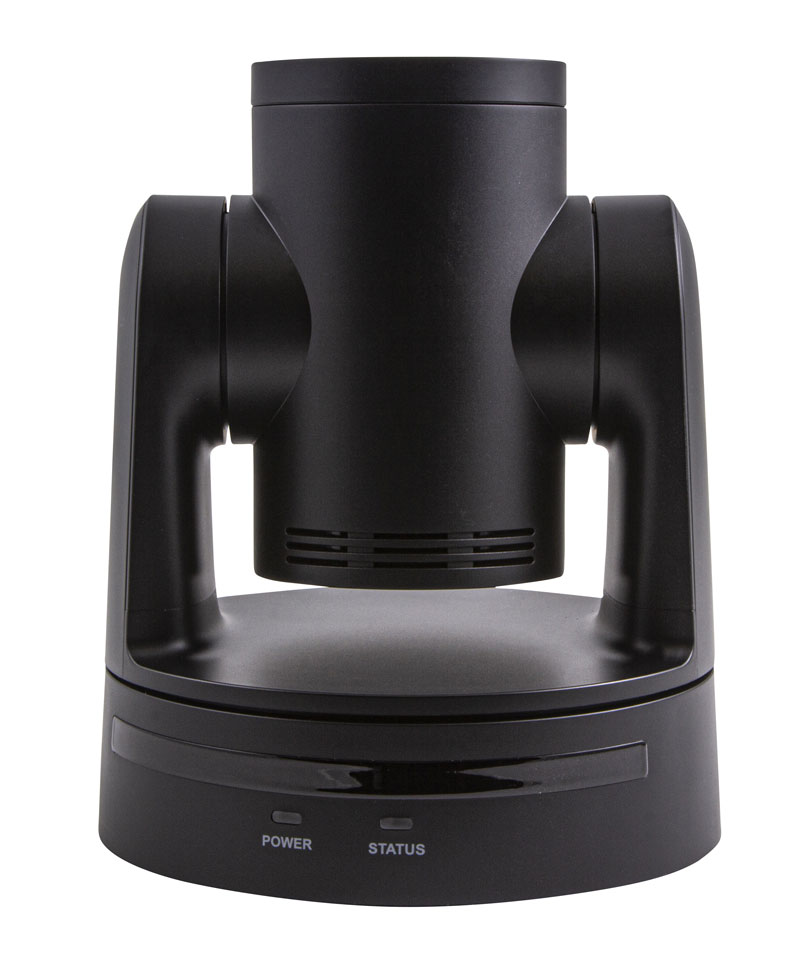

  • Black (CV605-U3)

CV605 with USB/HDMI or SDI

This model has USB & HDMI outputs. The other model with SDI can be found linked below. The other features like an additional IP port are identical. Both models are available in black and white.

Sensor & Lens
  • 2 Megapixel CMOS (1/2.8") HD sensor
  • 5x optical zoom (3~15mm)
  • Aperture angle 85° (at 3mm zoom) to 16° (at 15mm zoom)
  • 10x digital zoom
  • Min. illumination: 0.5 lux (F1.8)
Resolution and frame rates
  • 1920 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 fps)
  • 1920 x 1080i (60 / 59.94 / 50 fps)
  • 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 fps)

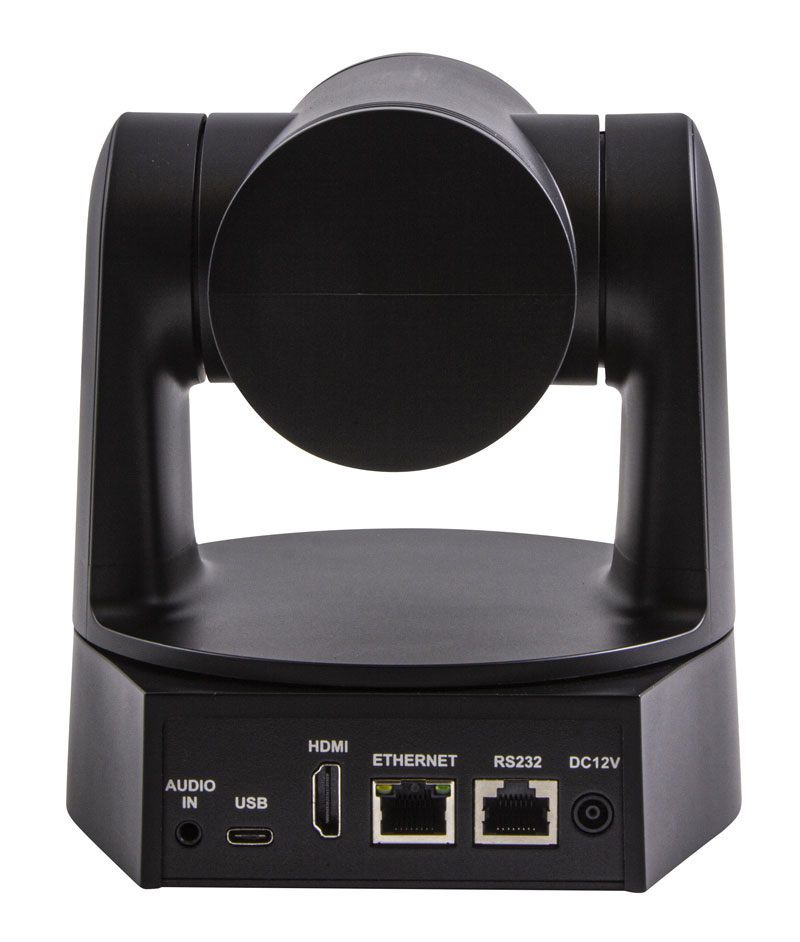

Connections
  • Ethernet
  • HDMI
  • USB-C (USB 3.0 & USB 2.0)
  • RS232 (via RJ45 port)
  • 3.5mm audio input, (AAC, MP3, G.711A compression)
Other features
  • Certified for Zoom Rooms
  • PoE+
  • Video, audio, control signals and power supply via one CAT cable
  • IP streaming: H.265/H.264 (RTSP/RTMP, ONVIF, GBT28181; Visca over IP control protocol)
  • Range of motion: 270° left/right, 60° up/down
  • Mounting: possible via 1/4" female thread on the bottom. Wall and ceiling mount available separately
Control options

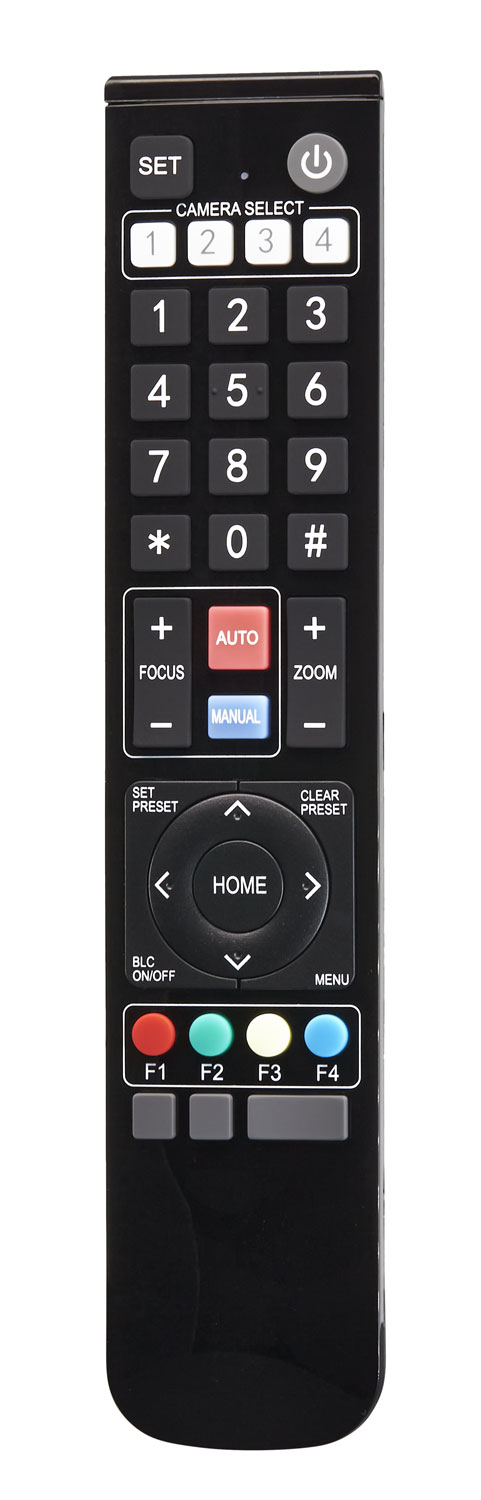

  • Infrared remote control for presets, pan, tilt, zoom, focus & picture adjustments via on-screen menu
  • Web interface: Access by entering IP address in browser
  • Joystick controller VS-PTC200 (via RS232): for presets, pan, tilt, zoom, focus, picture settings via on-screen menu
  • Joystick controller VS-PTC-IP (via IP / RS232): for presets, pan, tilt, zoom, focus, image settings directly at the controller & on-screen menu
Recommended ambient temperature and humidity
In operation:
  • Temperature: -10℃~+50℃
  • Humidity: 20% - 80%
During storage:
  • Temperature: -10℃~+60℃
  • Humidity: 20% - 95%
Dimensions & weight
  • 160mm (H) x 145mm (W) x 170mm (D)
  • 1.115g
Scope of delivery
  • Camera
  • Infrared remote control
  • Power supply unit & power cable
Manufacturer warranty: 2 years

With Facebook Live in just a few steps
  1. Activate Facebook Live Video
  2. Copy server URL & stream key from Facebook
  3. Paste Server URL & Streamkey into the camera's GUI
  4. Ready
You will find the manual for download the as a PDF above the description.

With OBS Live in a few steps
  • You can download the instructions as a PDF under the tab -> OBS Plugin Manual.
  • You can download the plug-in software as a ZIP file from the Marshall website.

Resolution: Full HD
Video Outputs: HDMI, USB, IP (H.264/H.265)
Zoom Certified: Barco Clickshare Compatible, PoE, Zoom Zertifiziert
Zoom Range: 5x

Videos

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Similar Cameras

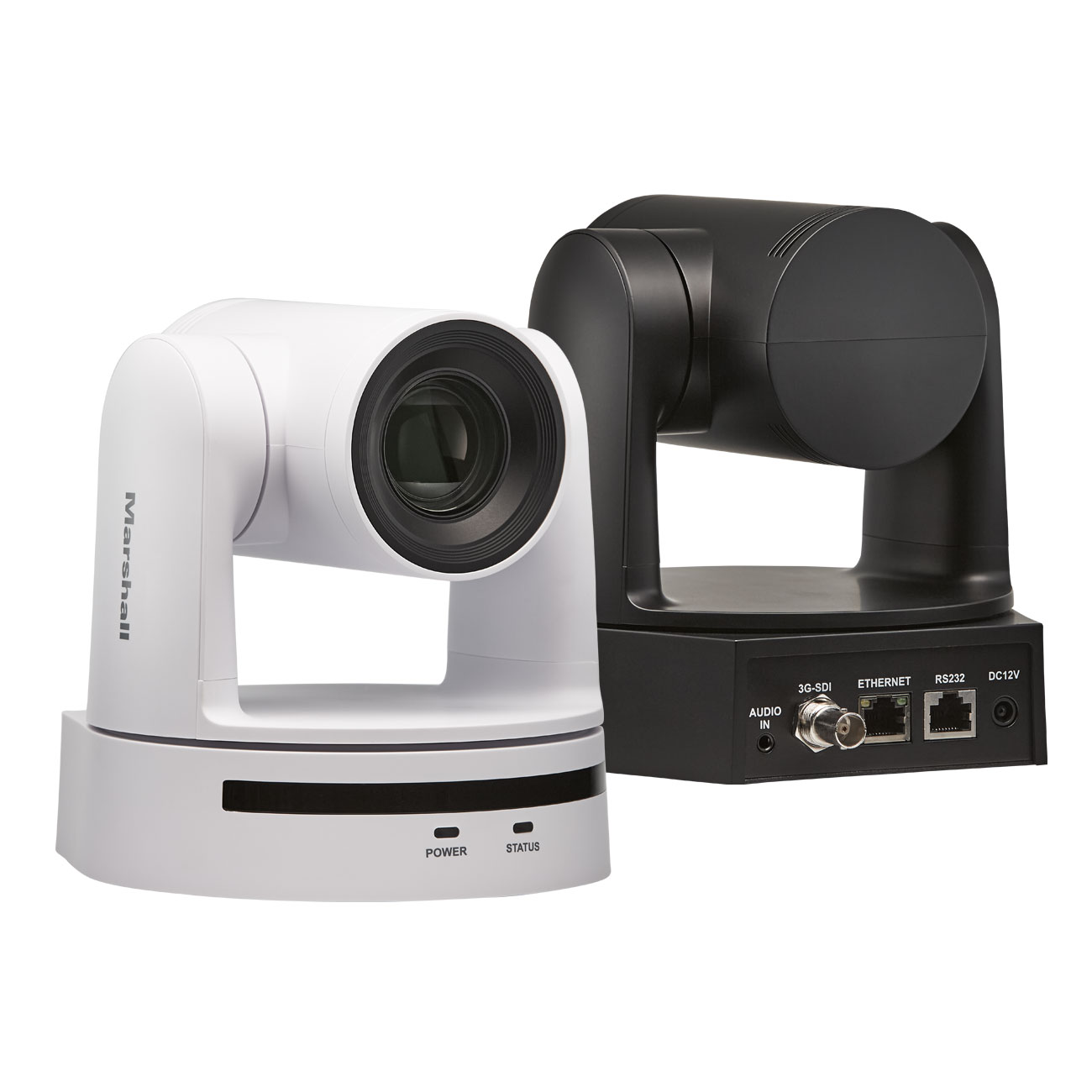

Marshall CV605-BK/-WH
  • Full HD
  • 3G-SDI | IP | PoE
  • 5x Zoom

€849.00*

Accessories

Marshall VS-PTC-200
  • 4D Joystick
  • VISCA | PELCO

€699.00*
Marshall VS-PTC-300
  • Video-Display Zoom-Wippe
  • Image & Speed Control
  • NDI | VISCA | PELCO | ONVIF

€1,099.00*
Home Run Box RS7-HR
  • Verteiler-Box für Kameras
  • 1x Eingang | 7x Ausgang
  • erhöht Distanz bis auf 600m

€299.00*

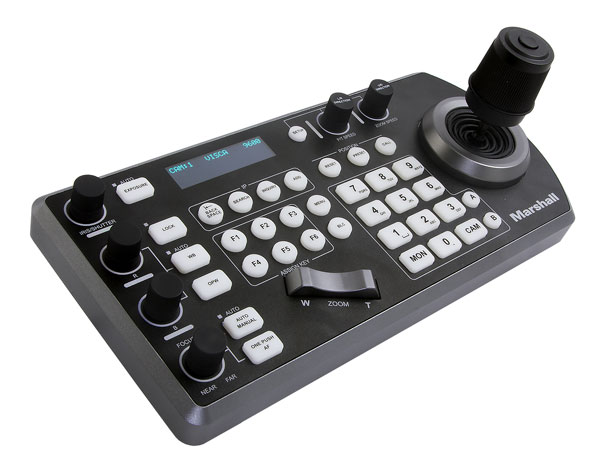

Marshall VS-PTC-IP
geringer Restbestand vorhanden

€1,399.00*

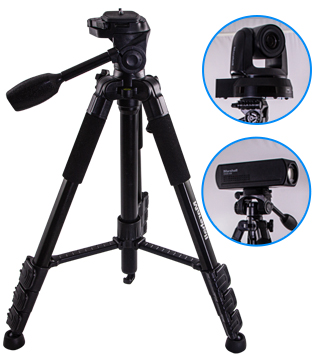

Marshall CVM-25
  • Floor Tripod
  • 47cm - 147cm
  • 2 Buble Level Indicator

€54.90*

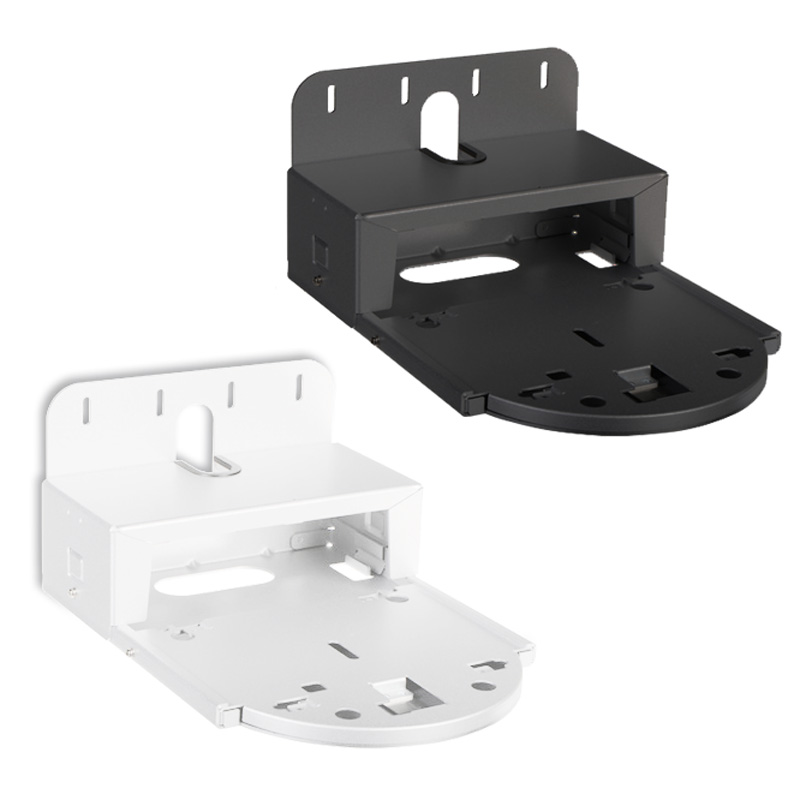

Marshall CV-PTZ-WM
