info@vision2see.deMarshall CV612-TBI / -TWI
- Full HD | 12x Zoom
- IP | 3G-SDI | HDMI | USB-C
- Full Face Tracking
Product number:
MACV612TBI
Product information "Marshall CV612-TBI / -TWI"

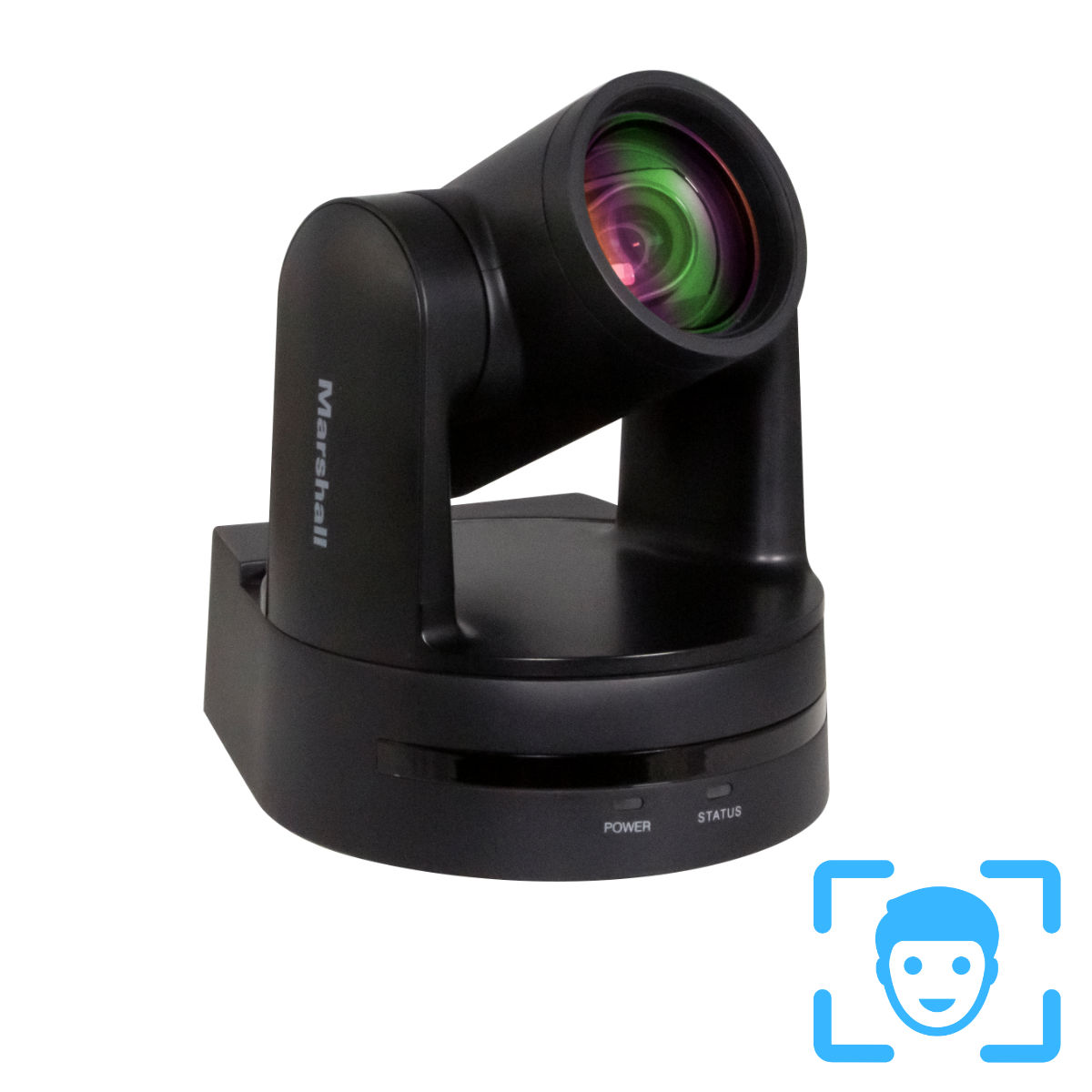

PTZ camera with automatic tracking
The Marshall CV620-BTI/WTI has three different tracking modes. Faces are recognized and automatically stay in focus. Here are the key facts about the camera first:
- new Sony IMX327 sensor
- Full HD
- simultaneous output via SDI, HDMI and IP port
- smooth motion during slow movements
- suitable for dynamic operations, pan / tilt up to 300° per second
Tracking Modes
- Everywhere Tracking, free tracking of different persons, selectable via web interface, for group presentations
- Partition Tracking, switching between presets, for presentations in front of different panels
- Stage Tracking, the camera moves sideways without zooming within an area, for presentations on stage

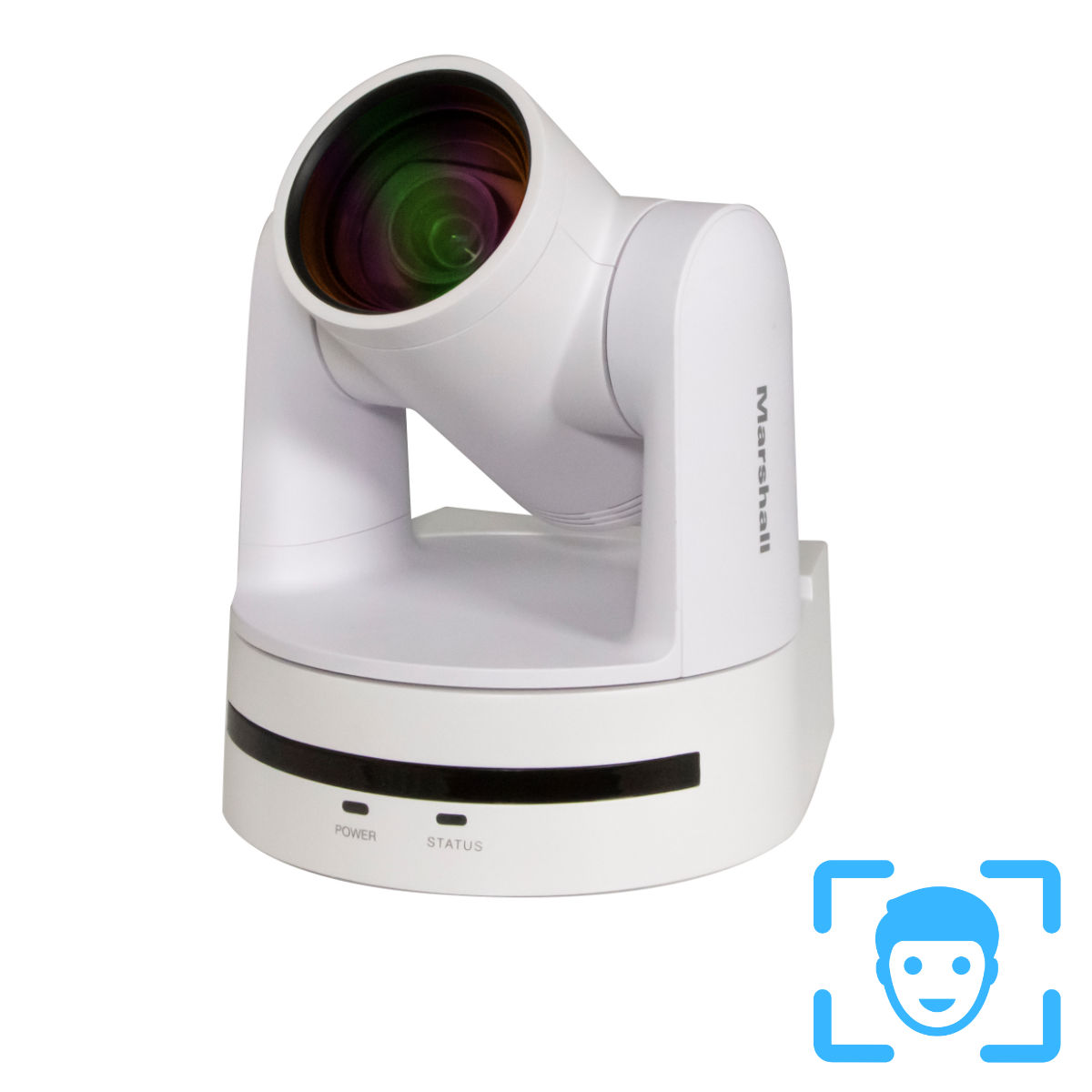

Smart face recognition
Regardless of where the person is in the room, the face remains in focus.

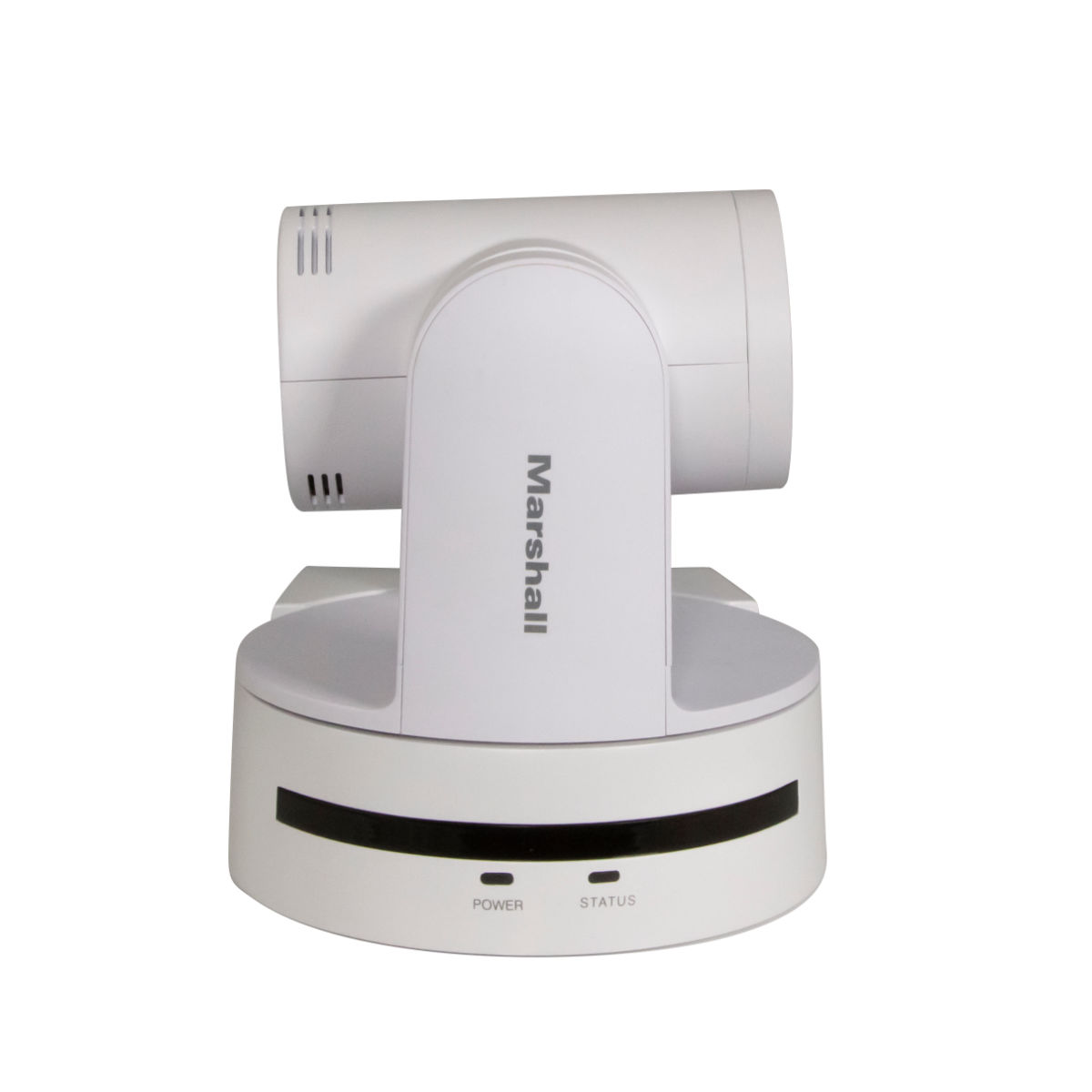

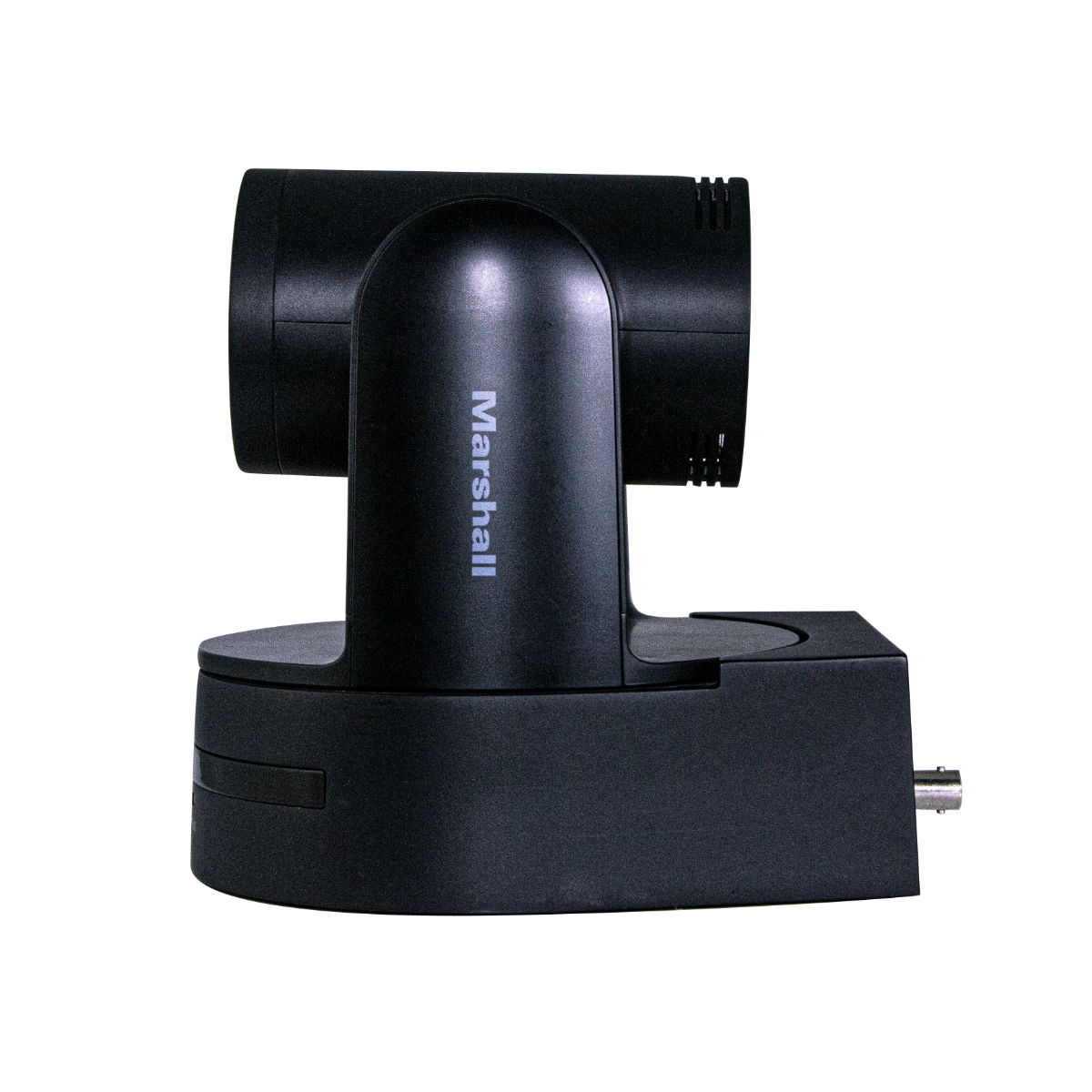

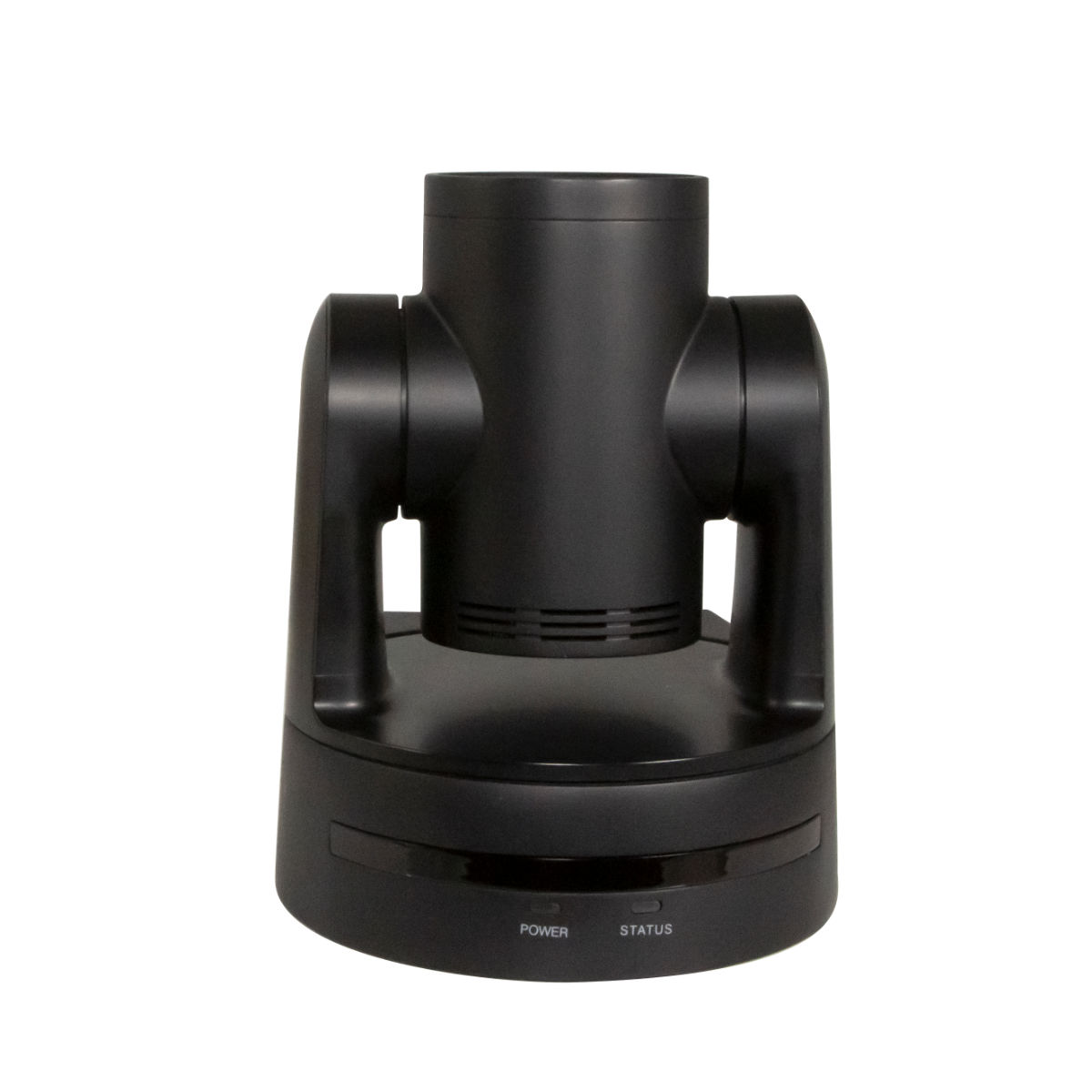

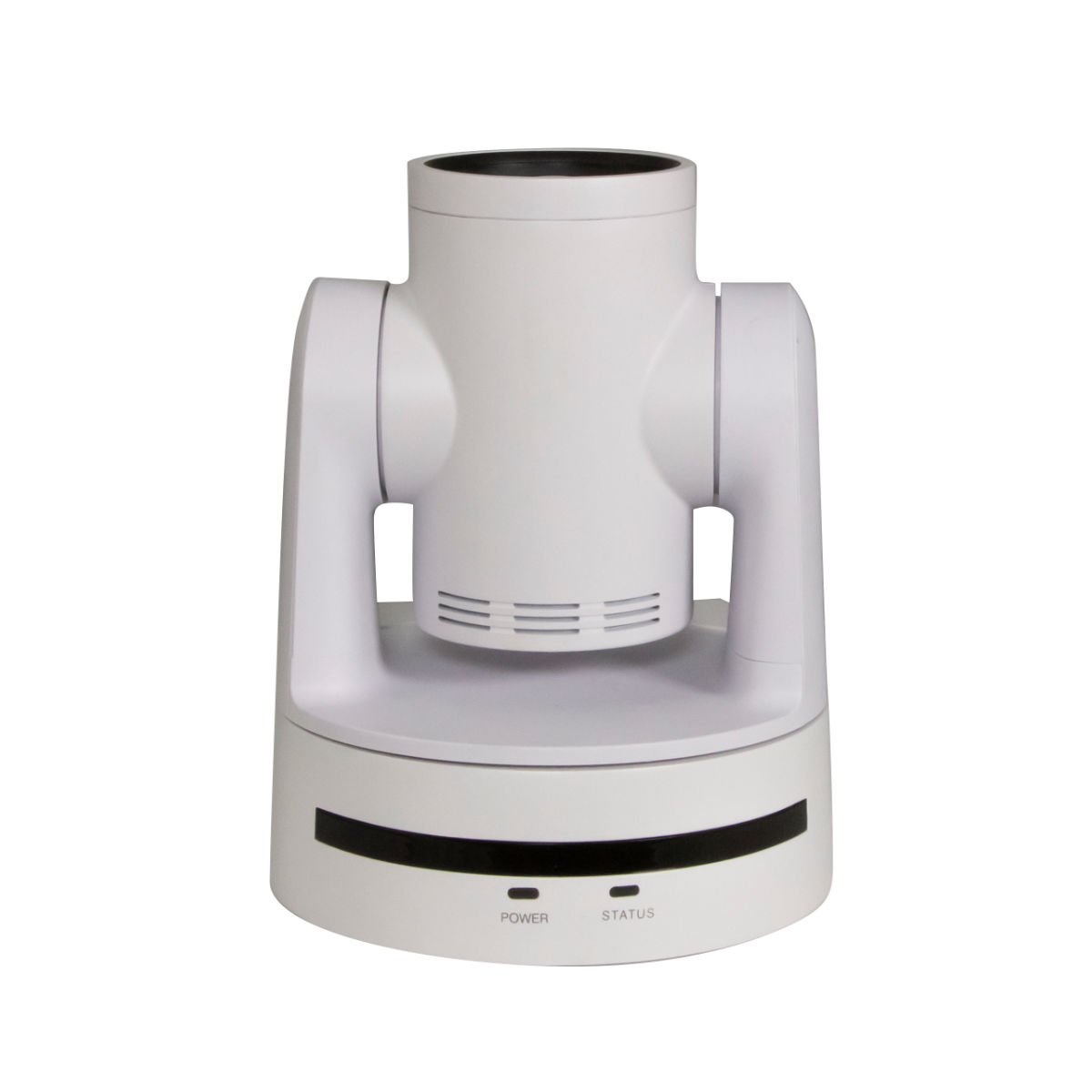

The camera is available in two colours
- Black (CV620-BI)
- White (CV620-WI)
Sensor & Lens
- Sony IMX327
- 2 Megapixel (1/2.8")
- 20-fach optical zoom (5.3~110mm)
- AOV: 60°(Wide) bis 3° (Tele)
- Focos Area: Recommended for sharp shots from a distance of 1.5 m
- Minimum Illumination: 1.0 lux (F1.6, 50IRE, 30fps)
- Aperture: F1.6~F3.6
Resolution and frame rates
- 1920 x 1080p (60 / 30 / 59,94 / 29,97 / 50 / 25 fps)
- 1280 x 720p (60 / 59,94 / 50 fps)

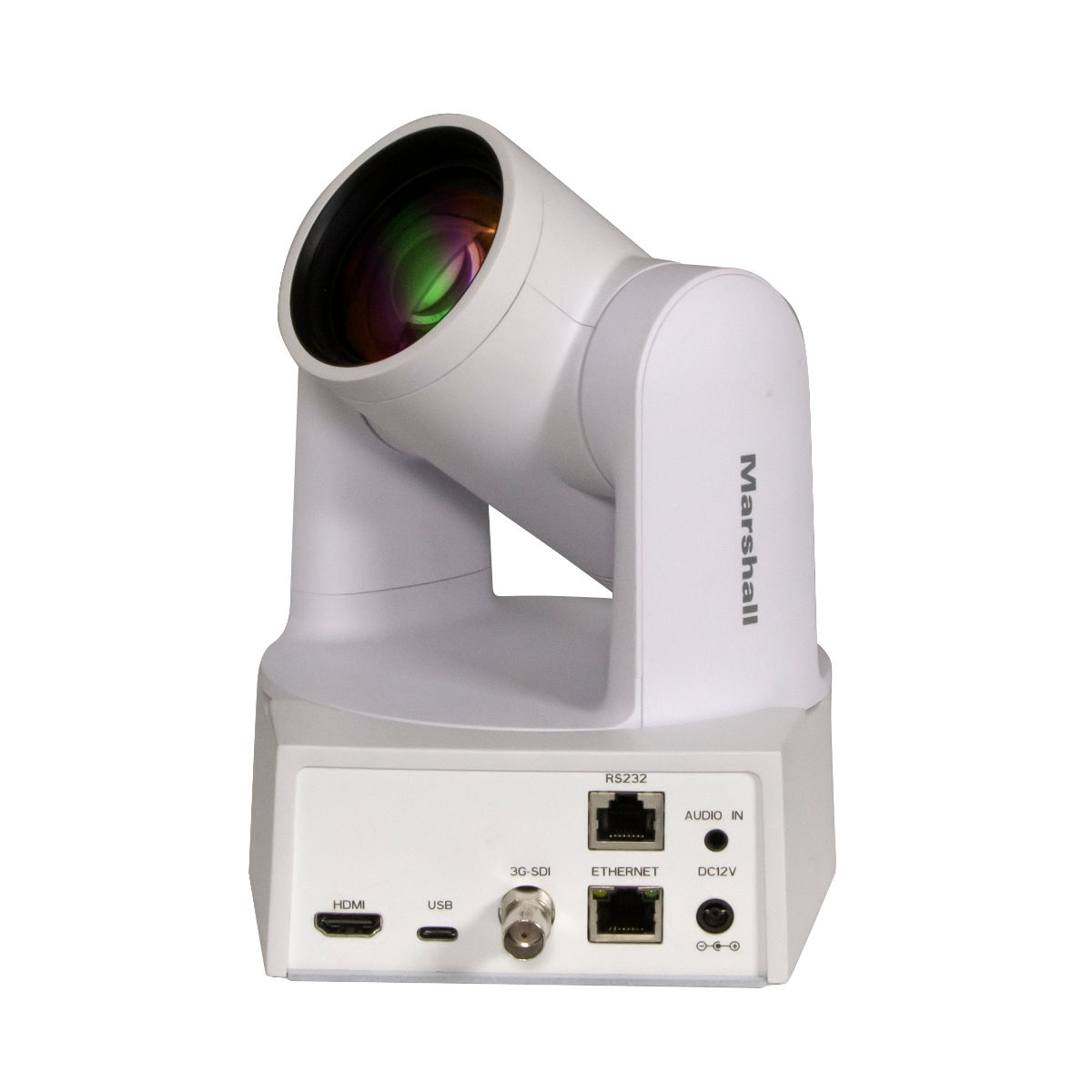

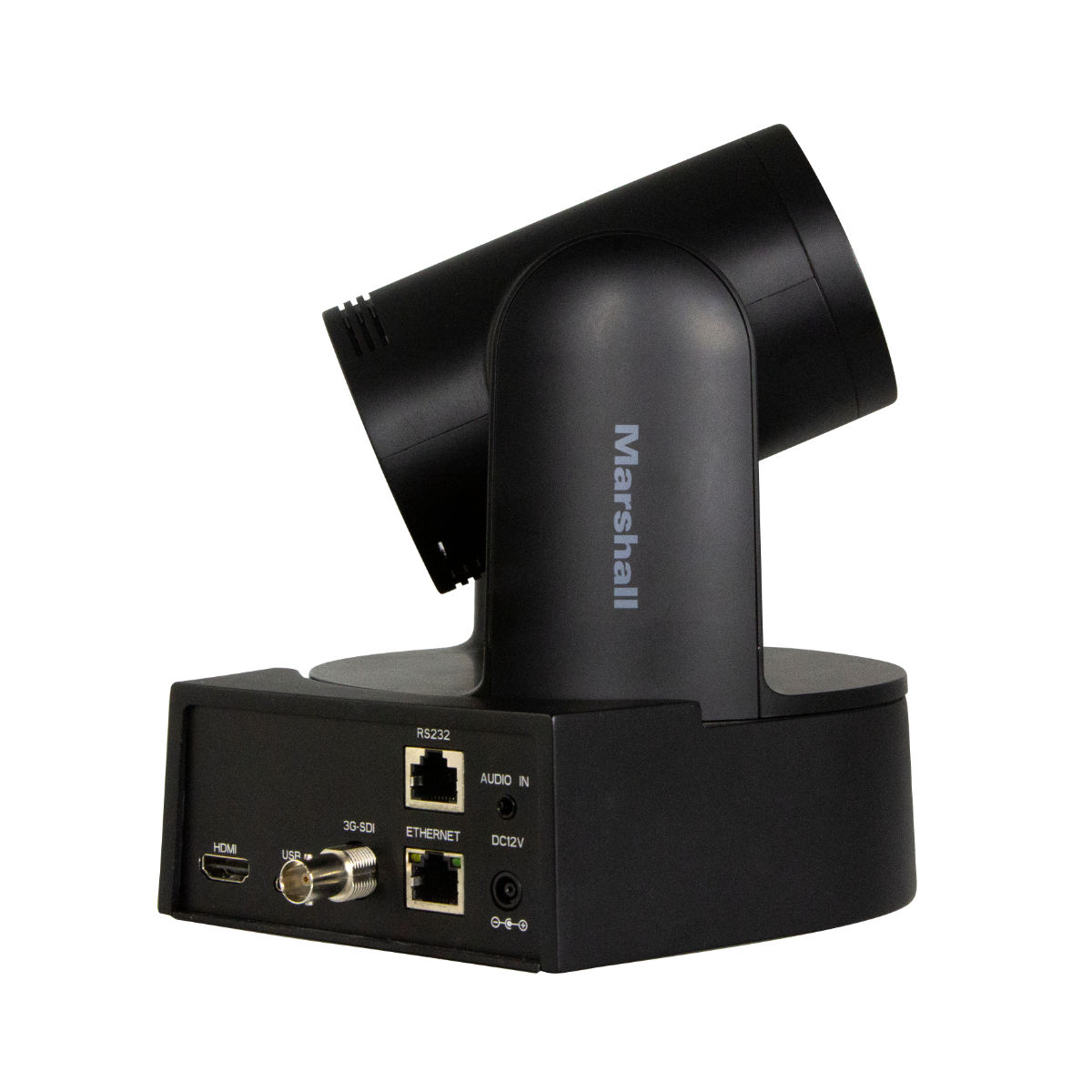

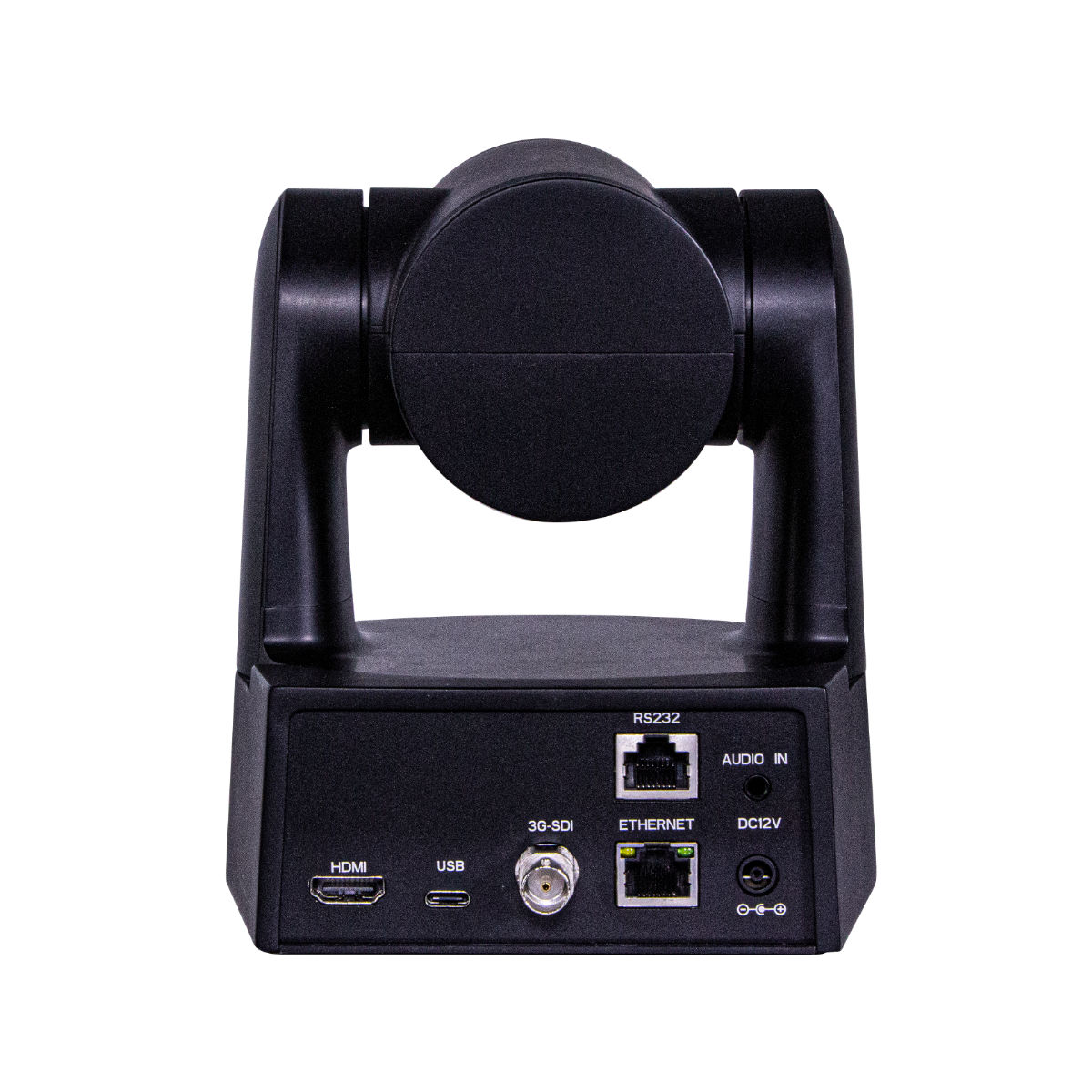

Connectivity
- IP
- 3G-SDI
- HDMI
- RS232
- RS422
- 3.5mm Audio Input with Passthrough
Control
- Steuerprotokoll: ONVIF, VISCA, PELCO D
- Panning Speed: 120° / Sekunde
- Panning Angle:: 170°
Video Stream
- RTSP
- RTMP
- RTMPS
- SRT
- MPEG-TS
Video Compression
- H264: 25/30/50/60 fps 1080p/720p
- MJPEG 1080p 30/15 fps
Image Settings
- Image Flip (Spiegelung horizontal, vertikal & beides kombiniert)
- Focus System (Auto, One-push AF, Manual)
- Gain Control (Auto/Manual)
- White Balance (Auto/Manual)
- Exposure Control (Auto/Manual)
- 3D NR
Audio
- Input: Line in/ Mic in
- Output: Ethernet / SDI / HDMI
Dimensions & Weight
- 185mm x 186mm x 174mm
- 1.9kg
Power Supply
- DC: 16W max.
- PoE+: 18W max.
Scope of delivery
- Camera
- Adapter plate for ceiling mounting
- IR Remote
- Power Supply and Power Cord
Warranty: 2 Years
With Facebook Live in just a few steps
- Activate Facebook Live Video
- Copy Server URL & Streamkey from Facebook
- Paste Server URL & Streamkey into GUI of camera
- Ready
You can download the instructions as a PDF above the description.
With OBS Live in just a few steps
- You can download the manual as a PDF under the tab -> OBS Plugin Manual
- You can download the plug-in software as a ZIP file from the Marshall Website
| Resolution: | Full HD |
|---|---|
| Video Outputs: | HDMI, USB, 3G-SDI, IP (H.264/H.265) |
| Zoom Certified: | Auto Tracking, PoE |
Login
Zubehör
Marshall CV6XX-HFH
€949.00*
- Schutz vor Regen, Sand & Staub
- integrierter Lüfter & Heizelement
- stabile Acrylglaskuppel

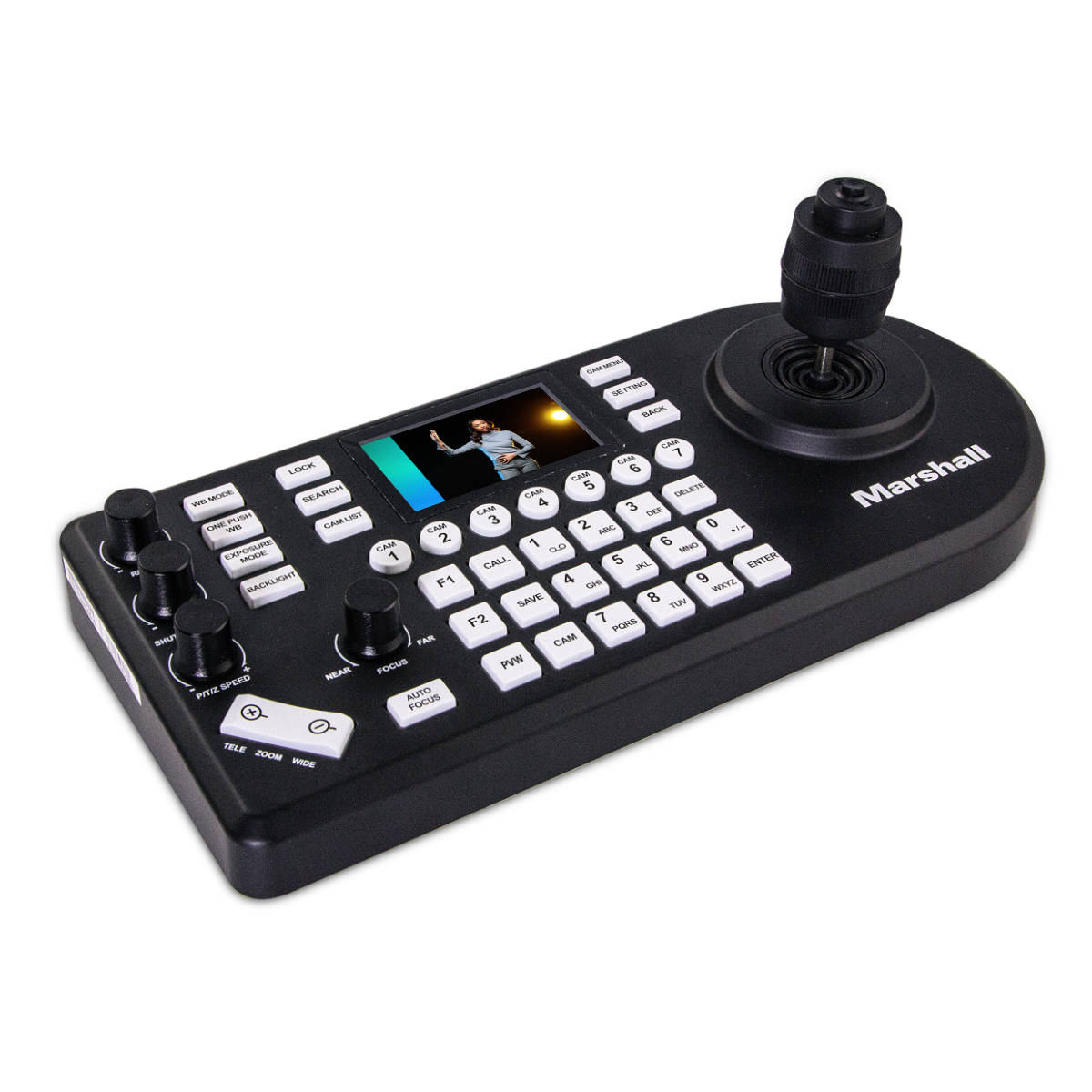

Marshall VS-PTC-300
€1,099.00*
- Video-Display | Zoom-Wippe
- Image & Speed Control
- NDI | VISCA | PELCO | ONVIF
Marshall VS-PTC-IP
€1,399.00*
- 4D Joystick | Zoom-Wippe
- VISCA | PELCO D/P | ONVIF | VISCA over IP
- Presets | Bildeinstellungen

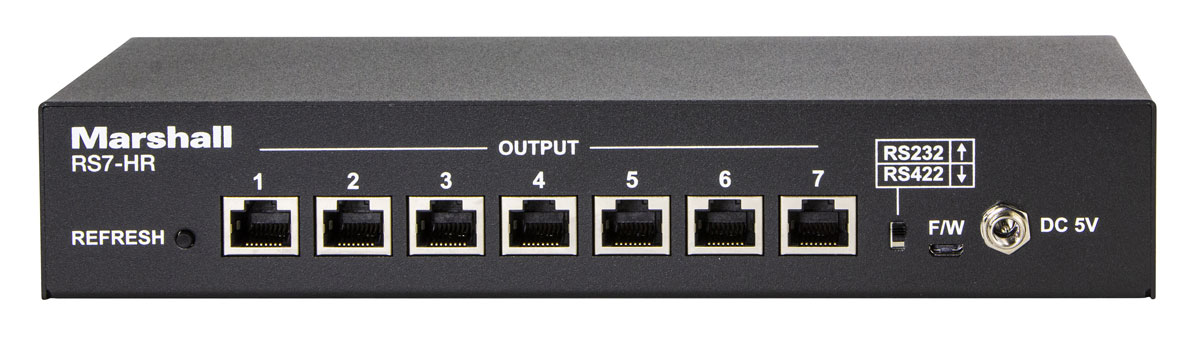

Home Run Box RS7-HR
