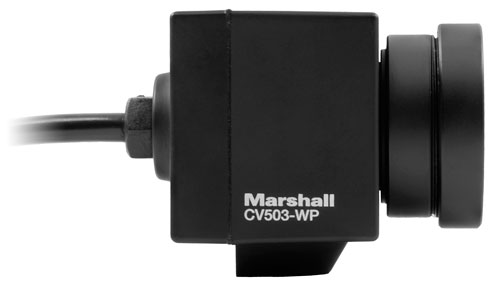

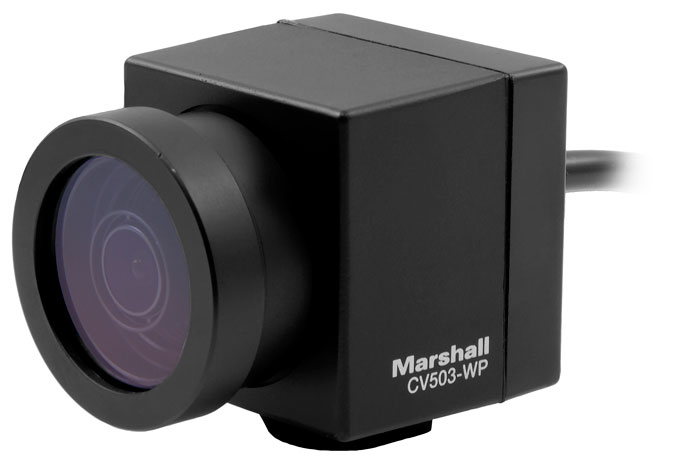

Marshall CV503-WP

Product information "Marshall CV503-WP"

Waterproof Full HD mini camera with interchangeable lens.

With the CV503-WP you can output video via 3G-SDI.

Sensor & Lens
  • 2.5 Megapixel sensor (1/2.86") Full HD
  • 4.0mm lens included (85° horizontal AOV)
  • M12 lens interchangeable (available in various focal lengths)* please see note below.
Resolution and frame rates
  • 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
  • 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

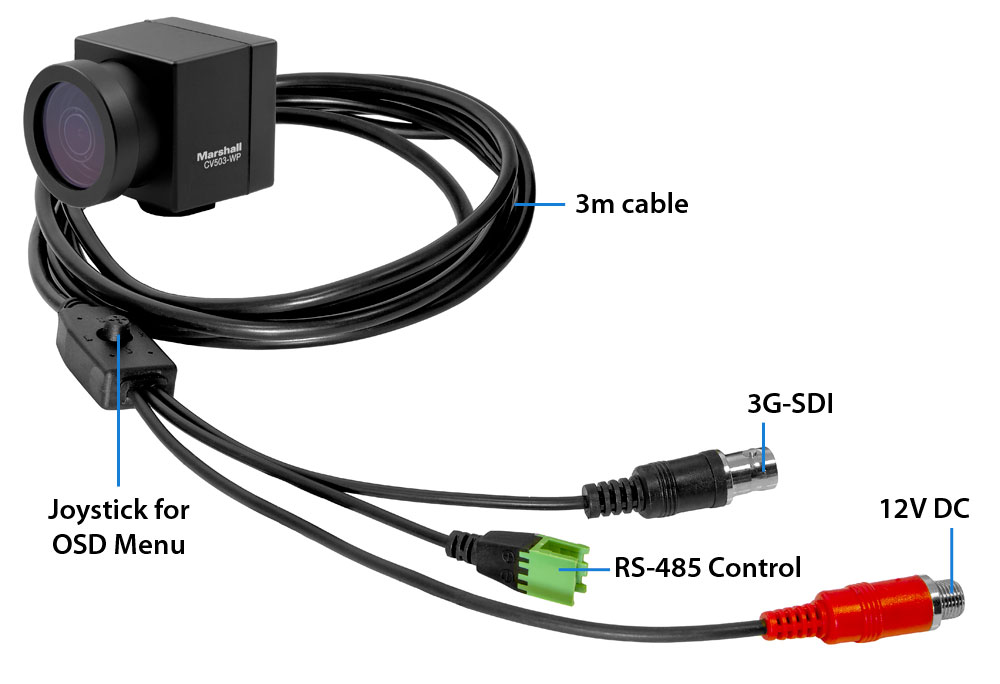

Connections
  • 3G-SDI
  • RS-485 (with terminal connection for 2-pole cabling)
  • USB port for firmware updates
  • 3.5mm stereo audio input
  • 12V DC
Features
  • IP67 water protection rating (suitable for temporary submersion)
  • Versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
  • Day/Night mode (automatic and manual selectable)
  • Adjustment via On Screen Menu: by joystick on cable
  • Adjustment in live mode: with external control panel via RS-485 (VISCA)
  • Compact & robust housing
  • 1/4" female thread on the bottom
Power consumption
  • 6W (12V DC / 500mA)
Dimensions
  • 47mm (H) x 44mm (W) x 56mm (D)
Scope of delivery
  • Camera
  • 4.0mm lens

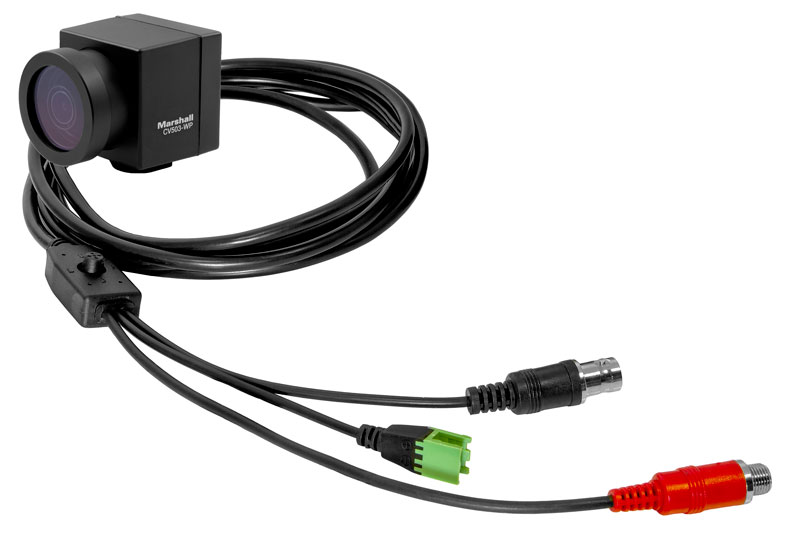

  • Breakout cable (3m length)
  • Power supply unit
Manufacturer's warranty: 2 years

Note: Water protection for other lenses
In principle, you can mount all M12 lenses onto this camera. However, the protective cap is designed to fit perfectly over these two lenses:
  • 4.0mm approx. Horizontal AOV = 85º included in delivery
  • 2.8mm approx. Horizontal AOV = 100º (Article No. CV-4702.8-3MP-IR)

If the aperture angle is larger, you may see a vignette in the image.
If the water protection is not absolutely necessary, you can remove the protective cap. Then you can use all M12 lenses.

Water protection with longer cap
With the larger cap (model no.: CV502-WP-CAPS-LG) you have full water protection even with longer lenses.
  • 6.0mm approx. Horizontal AOV = 48º (no fisheye) (Article No. CV-4706-3MP-IR)
  • 8.0mm approx. Horiz AOV = 40º (Article No. CV4708.0-3MP)
  • 12.0mm approx. Horiz AOV = 33° (Article No. CV4712.0-3MP)
  • 16.0mm approx. Horiz AOV = 25° (Article No. CV4716.0-2MP)
Lens Options: M12-Mount (interchangeable)
Resolution: Full HD
Video Outputs: 3G-SDI
Zoom Certified: Waterproof (IP67)
