Marshall CV344

  • Full HD
  • 3G-SDI
  • CS Lens Mount

€599.00*

Product number: MACV344
Product information "Marshall CV344"

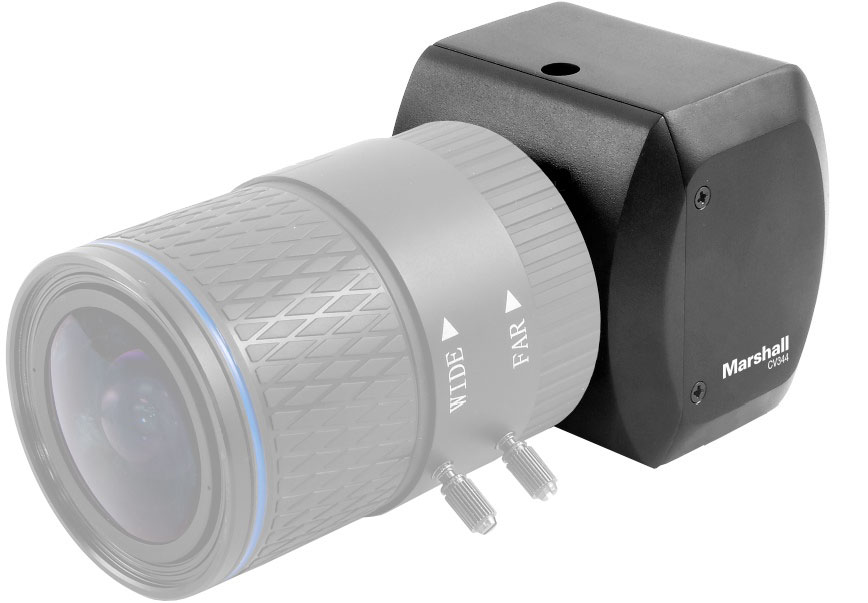

Full HD mini camera with CS mount

With the CV344 you can output video via 3G-SDI.


Sensor & Lens
  • 2.5 Megapixel sensor (1/2.8") Full HD
  • CS- / C-mount (lenses available separately in various focal lengths)
Resolution and frame rates
  • 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
  • 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

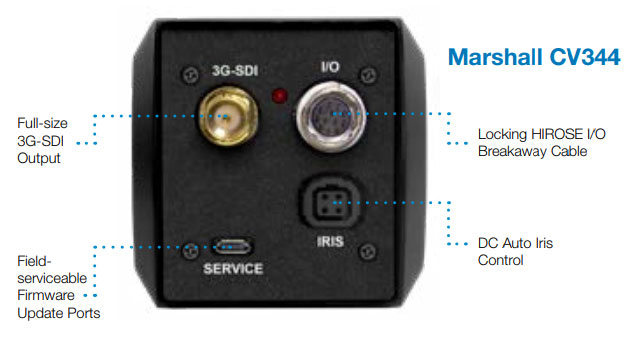

Connections
  • 3G-SDI
  • RS-485 (with terminal connection for 2-pole cabling)
  • USB port for firmware updates
  • 3.5mm stereo audio input
  • DC port for lenses with auto iris
  • 12V DC for power supply
Features
  • versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
  • Adjustment via On Screen Menu: by joystick on cable
  • Adjustment in live operation: with external control panel via RS-485 (VISCA)
  • Compact & robust housing
  • 1/4" female thread on the bottom
Dimensions & weight
  • 56mm (H) x 56mm (W) x 59mm (D)
  • 160g
Scope of delivery
  • Camera
  • Breakout cable
  • Power supply unit
Manufacturer warranty: 2 years
Lens Options: CS-Mount (interchangeable)
Resolution: Full HD
Video Outputs: 3G-SDI

0 of 0 reviews

Leave a review!

Share your experiences with other customers.
