Product information "CVW Swift800 Pro Set 2R"
Swift800 Pro Set with two receivers
Main Features
- SDI / HDMI connections
- Receiver with dual SDI outputs
- line-of-sight range: up to 250m
- Low latency of 70ms
- DFS function
- Free app for monitoring and recording with mobile devices
- Frequency range (EU): 5.1 - 5.8 GHz
- Video in Full HD 1080/60p
- Fan can be switched on and off by pressing a button
- Frequency selection: manual with buttons (control via LED display)
- Mounting options: Internal thread on the underside (adapter included)

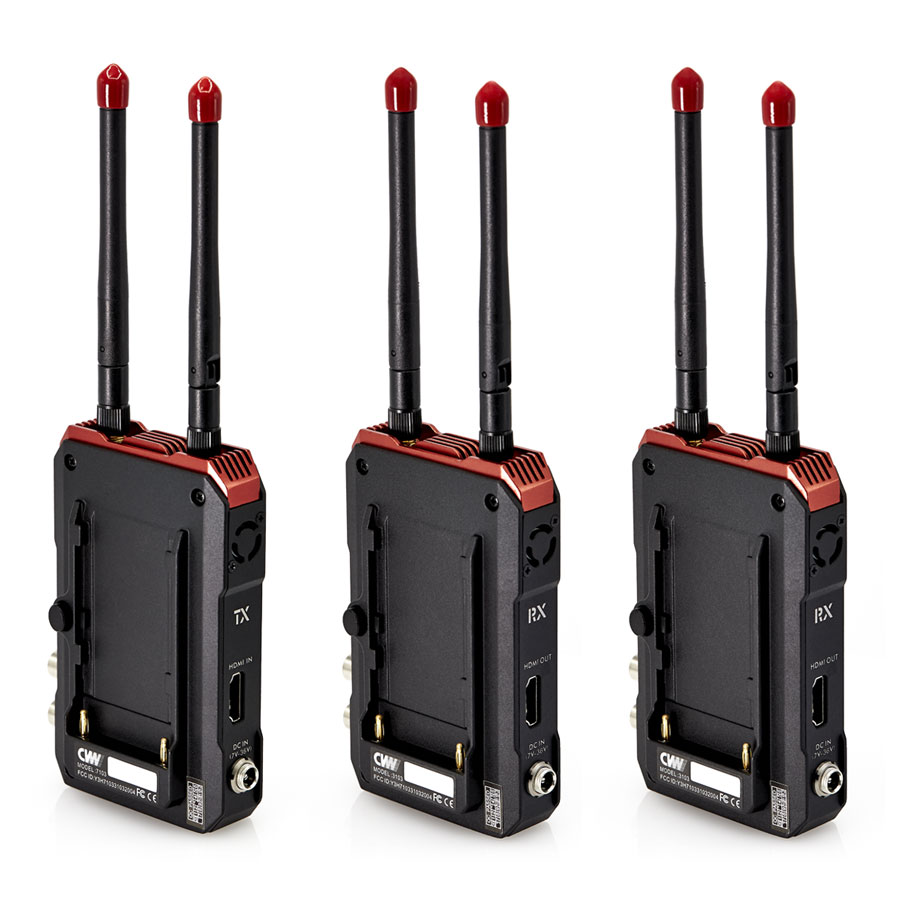

- Battery mount: SONY F-Type Battery Plate
Video formats
- 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25* / 24 / 23.98* fps) * 25 / 23.98p is output as 24p.
- 1080i (60 / 59.94* / 50 fps) * 59.94i is output as 60p
- 720p (60 / 59.94* / 50 fps) * 59.94p is output as 60p
Illuminated screen display
- Battery indicator incl. low battery warning
- Fan
- Resolution
- Signal strength
App features at a glance
- Recording
- Supports processing of image effects (waveform, auxiliary focus, 3D LUT)
- Photo capture
- Spectral scanning
- Frequency modification
- Channel selection
Crystal Vision App
- Android: available in the Google Play Store under "Crystal Vision
- iOS: available in the App Store under "Crystal Vision
Note on app use:
The transmitter can send the video to max. two receivers. Receivers can be the regular radio link receiver and smartphones. In the normal set that consists of 1x transmitter and 1x receiver, the app can also be used with 1x smartphone. If the video is sent to 2 smartphones, it cannot be received by the radio link receiver at the same time. The same principle applies to the extension with 2 radio link receivers.
Here is an overview of the options:
- Transmitter sends to 1x Receiver + 1x Smartphone
- Transmitter sends to 2x Receiver
- Transmitter sends to 2x Smartphon
DFS function (automatic channel change for outdoor applications)
Frequency ranges for manual channel change:
- CH1: 5.180 GHz
- CH2: 5.240 GHz
- CH3: 5.765 GHz
- CH4: 5.805 GHz
Frequency ranges DFS (automatic channel change):
- CH1: 5.180 GHz
- CH2: 5.220 GHz
- CH3: 5.500 GHz
- CH4: 5.540 GHz
- CH5: 5.580 GHz
- CH6: 5.620 GHz
- CH7: 5.660 GHz
- CH8: 5.745 GHz
- CH9: 5.785GHz
Connections
Transmitter
- 1x 3G-SDI In
- 1x 3G-SDI Loop Out
- 1x HDMI In
- 1x Mini USB
- 1x DC In 7 - 36 V
- 1x NP-F battery mount
- 2x antenna ports
per receiver
- 2x 3G-SDI Out
- 1x HDMI Out
- 1x Mini USB
- 1x DC In 7 - 36 V
- 1x NP-F battery mount
- 2x antenna ports
Power supply
- Power consumption: 6W transmitter / 7.2W receiver
- Sony F-Type battery mount integrated in the housing (transmitter and receiver)
- Power supply unit (1x included in delivery)
Dimensions and weight
Identical for transmitter and receiver
- 230mm x 80mm x 30mm (incl. antennas)
- 120mm x 80mm x 30mm (without antennas)
- 220g (incl. antennas)
- 200g (without antennas)
Box incl. accessories
- 280mm x 150mm x 90mm
- 1,2kg
Material
- Housing of the units made of metal
- Antennas made of metal with plastic coating
- Case made of plastic

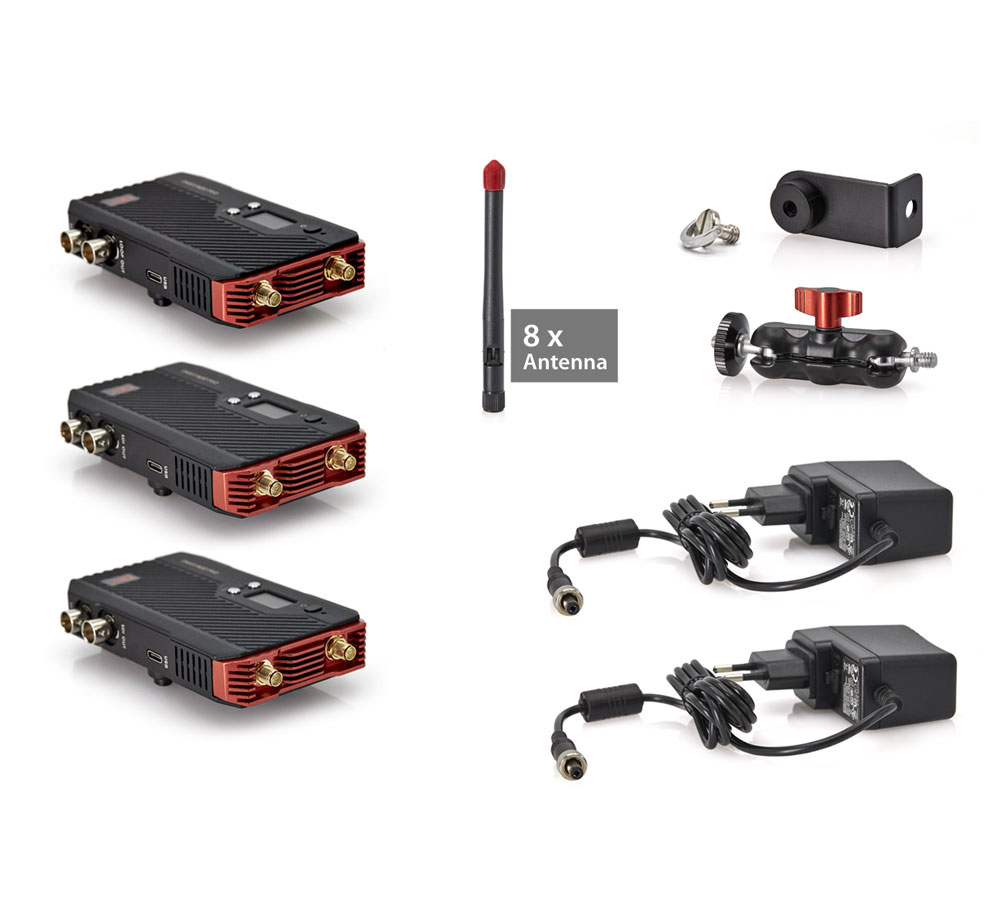

Scope of delivery
- 1x Transport bag with zip
- 1x transmitter (with 2 antennas)
- 2x receiver (with 2 antennas each device)
- 2x antennas for reserve
- 2x power supply unit (12V / 2A)
- 1x magic arm
- 1x angle adapter
| Produktgruppe: | Video-Funkstrecke |
|---|---|
| Status der Verfügbarkeit: | EOL (kein Lagerbestand mehr) |
