CVW Pro300Plus

HDMI | SDI
up to 300m
Latency < 1ms

€2,599.00*

Prices excl. VAT plus shipping costs

We distribute the articles via selected specialist dealers.

Product number: CVPro300Plus

Product information "CVW Pro300Plus "

Wireless video set with zero delay for distances up to 300m

Main Features

Transmission speed: under 1ms
3G-SDI / HDMI connections
Line-of-sight range: 300m
Video in Full HD 1080/60p (uncompressed 4:2:2 at 10bit)
Audio formats: PCM, DTS-HD, Dolby True HD
Mounting options: internal thread (bit-shoe adapter included)
Time code transmission

Frequency range: 5 GHz

Bandwidth: 40MHz
Frequency selection: manually via keys
Available channels: 4
Channel display: via LED

Available frequencies

Channel 1: 5.170 GHz
Channel 2: 5.230 GHz
Channel 3: 5.755 GHz
Channel 4: 5.795 GHz

Video Formats

1080p (23.98/24/25/30/50/60 fps)
1080i (50/59.94/60)
720P (50/59.94/60 fps)

Audio Formats

PCM
DTS-HD
Dolby True HD

Connections

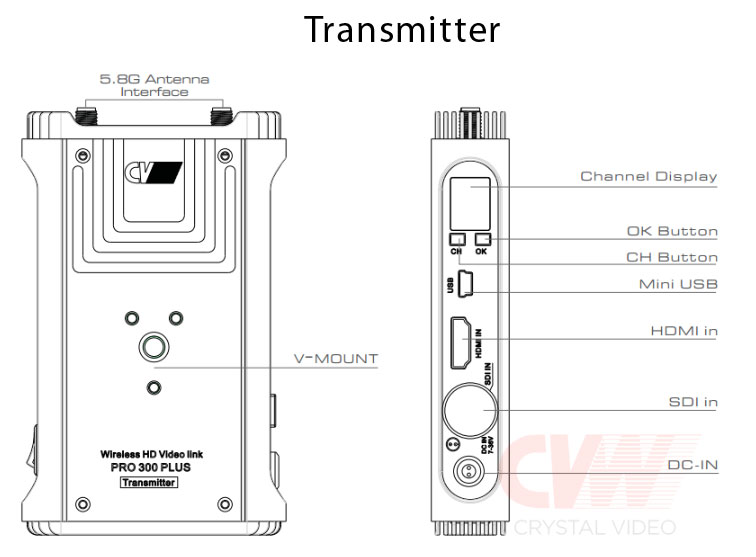

Transmitter

1x 3G-SDI In
1x HDMI In
1x Mini USB
1x DC In 7 - 36 V, 2pin female
2x Antenna Ports

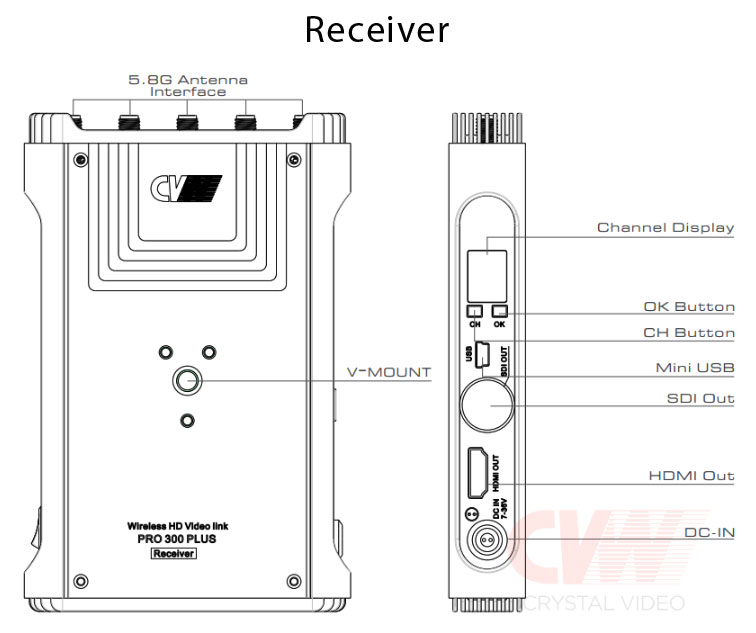

Receiver

1x 3G-SDI
1x HDMI Out
1x Mini USB
1x DC In 7 - 36 V, 2pin female
5x Antenna Ports

Power Supply

Power consumption: 8W transmitter / 7W receiver
via D-Tap (2x adapter cables included)
V-mount batteries can be mounted on the housing via adapter plate. Power transmission works via the D-Tap cable
Power supply unit (1x included in delivery)

Dimensions and weight

Transmitter

318mm x 98mm x 24mm (incl. antennas)
128mm x 77mm x 24mm (without antennas)
236g (inkl. Antennen)
186g (ohne Antennen)

Receiver

340mm x 98mm x 24mm (incl. antennas)
150mm x 98mm x 24mm (without antennas)
406g (incl. antennas)
286g (without antennas)

Case incl. accessories

340mm x 310mm x 125mm
3,0kg

Material

Housing of the units made of metal
Antennas made of metal with plastic casing
Case made of plastic

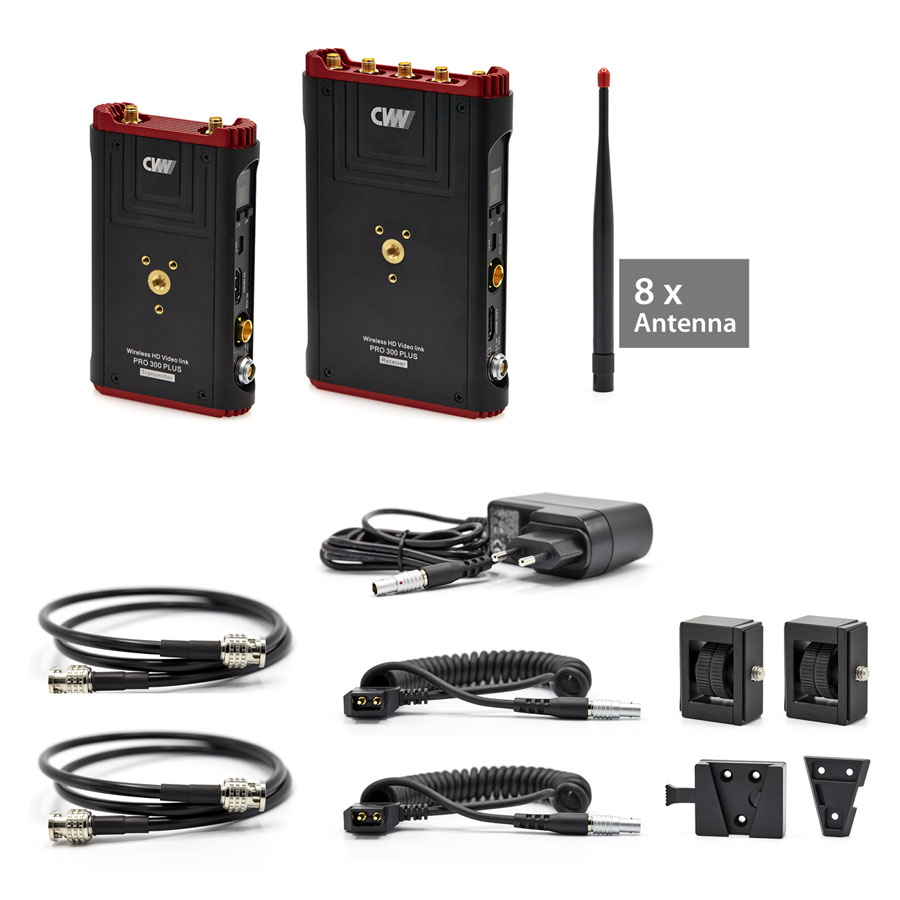

Scope of delivery

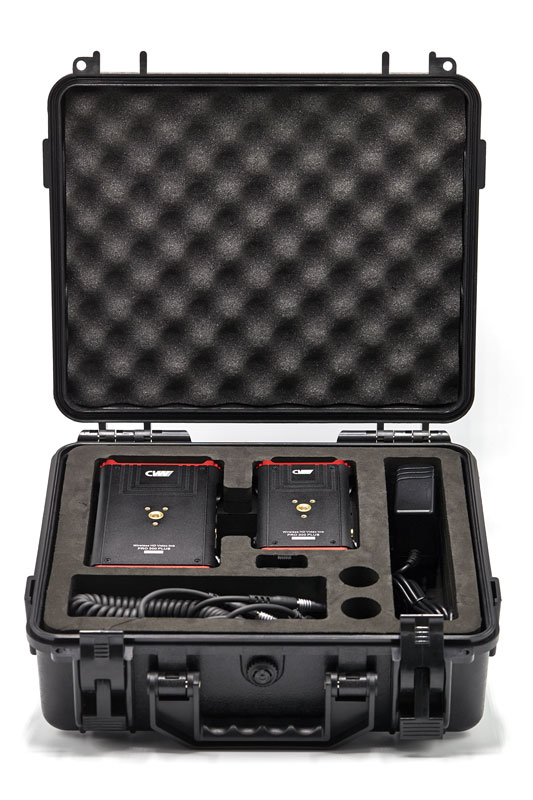

1x Solid hard shell case with custom-fit foam
1x Transmitter (with 2 antennas)
1x receiver (with 5 antennas)
1x antenna for reserve
2x BNC cable (80 cm)
1x power supply unit
2x DC adapter cable (D-tap to 2pin plug, Lemo compatible)
2x adapter with 1/4" thread on both sides
1x V-mount adapter

DFS Note:

The radio links operate without DFS. This gives you the opportunity to select free radio channels in the 5Ghz range yourself. Depending on the environment or the requirements of the organiser, a change of channel may be useful or mandatory. Please note that depending on the location, if it cannot be classified as indoor or indoor-like (like football stadiums), DFS is mandatory in some countries.

Current and detailed information on this topic is always available from the network agency of the respective country.
